Switch Function
Maintained
Application Environment
Commercial
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Wire Connection Type
Modular Wiring
Contact Material
Silver Alloy
Resistance Properties
Impact Resistant
Voltage Rating
120/277V AC
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Locking Style
Not Applicable
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Switch Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Max. Continuous Current
15A
Top Material
Thermoplastic, Blue
Max. Working Voltage
277V AC
Toggle Material
Thermoplastic
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
Uses SNAPConnect Connector
Base Material
Thermoplastic, Black
Current / Amperage Rating
15 A
Dimensions
4.18 in x 1.3 in x 1.74 in
Voltage Rating Description
120-277 VAC
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temperature Rise - Max.
30°C maximum at rated current

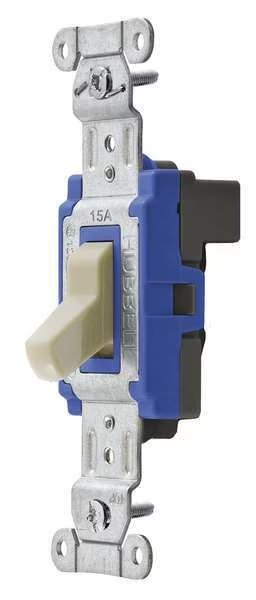

Item Type
Single Pole Toggle Switch
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minutenElectrical - Max. Continuous Current - 15AnElectrical - Max. Working Voltage - 277V ACnElectrical - Overload - Minimum 4.8 times rated current for 100 cyclesnElectrical - Temperature Rise - 30°C maximum at rated currentnEnvironmental - Flammability - UL 94V-2nEnvironmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impactnMechanical - Terminal Accommodations - Uses SNAPConnect Connector
Country of Origin (subject to change)
United States
