Item

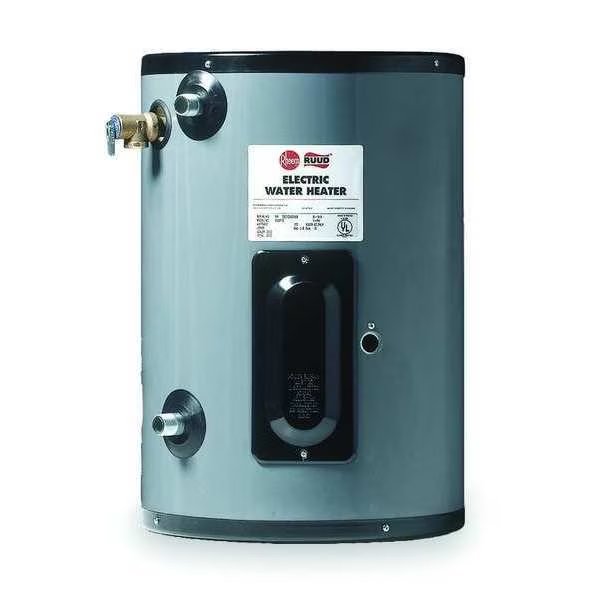

Point-of-Use Electric Water Heater
Height to Cold Side Connection
4 1/4 in
Height to Top of Vent Connection
22.88
Temp. Range
110 Degrees to 170 Degrees F
System of Measurement
Inch
Item - Water Heaters
Mini Tank Water Heater
Height to Top of Heater
22.88
Features
Automatic Temperature Control
Recovery @ 120 F Rise
10 gph
Recovery @ 100 F Rise
12 gph
Recovery @ 140 F Rise
9 gph
Height to Hot Side Connection
20 3/8 in
Commercial / Residential
Commercial
Height to T and P Opening
19-3/8
Tank Capacity - Plumbing
10.0 gal
Compliance
UL Certified; UL Standard 174; NC Compliant; ASHRAE Standards
Residential / Commercial
Commercial
Includes
Resistor Elements, Surface Mounted Thermostat
Water Heater Design
Point-of-Use
Standards
ASME, CSA Certified, UL Listed
Voltage - Water Heaters
208
Water Connection
3/4 in NPT
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Overall Height - Water Heaters
22 7/8 in
Thermal Efficiency
Not Rated
Manufacturer Warranty Length
3 yr Limited Tank
Thermostat Mounting
Surface
Height to Cold Inlet
4.25 in
Maximum Delivered Temperature
170 Degrees F
Maximum Water Pressure
150 psi
Water Connection Location
Side
Included Valve Type
T u0026 P Relief
Overall H x Dia.
22.87 in x 15.75 in
Maximum Recovery Flow Rate
30 gph @ 40 Degrees F
Height to T and P Valve
19.37 in
Minimum Delivered Temperature
110 Degrees F
Tank Outer Shell Material
Steel
Included Valves
Temperature and Pressure Relief
First Hour Rating
Not Applicable
Mounting Type
Wall Mounting
Height to Hot Outlet
20.37 in
Tank Outer Shell Finish
Porcelain Enamel
Recovery Rate @ Rise
10 gph @ 120 Degrees F, 12 gph @ 100 Degrees F, 15 gph @ 80 Degrees F, 20 gph @ 60 Degrees F, 30 gph @ 40 Degrees F, 9 gph @ 140 Degrees F
Tank Insulation Material
Polyurethane
Country of Origin (subject to change)
Mexico
