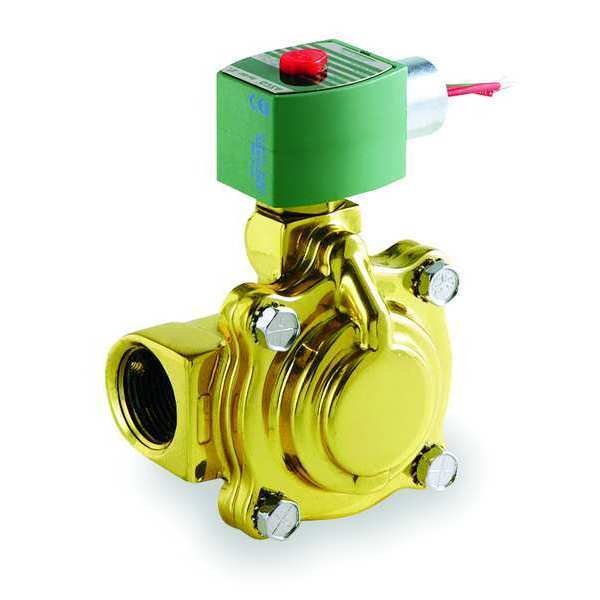

Pipe Size - Valves
1 1/4 in
Center Line Pipe Center Size
4 in
Electrical Connections
1/2
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material - Valves
Brass
NEMA Rating
1, 2, 3, 3S, 4, 4X
Coefficient of Volume
15.0
Application
Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
Media
Air/Inert Gas, Light Oil and Water
Coil Enclosure
Watertight No Junction Box
Max. Operating Pressure Differential Water
150 psi
Max. Operating Pressure Differential Air/Inert Gas
150 psi
Min. Operating Pressure Differential
5 psi
Max. Fluid Temp.
180 Degrees F
Max. Operating Pressure Differential Light Oil
100 psi
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Valve Ways and Positions
2-Way/2-Position
Operation Type
Pilot Operated
Operating Pressure Differential Steam - Minimum
Not Applicable
Operating Pressure Differential Air/Inert Gas - Minimum
5 psi
Ambient Temperature - Minimum
14 Degrees F
Outlet Connection Type
NPTF
Ambient Temperature - Maximum
140 Degrees F
Operating Pressure Differential Fuel Gas - Minimum
Not Applicable
Operating Pressure Differential Steam - Maximum
Not Rated
Operating Pressure Differential Water - Minimum
5 psi
Coefficient of Volume (Cv)
15
Valve Starting Configuration
Normally Closed
Valve Positions
2-Position
Operating Pressure Differential Hot Water - Maximum
Not Rated
Operating Pressure Differential - Maximum
150 psi
Operating Pressure Differential Natural Gas - Maximum
Not Applicable
For Media
Air, Inert Gases, Light Oil, Water
Operating Pressure Differential Cryogenic Fluid - Minimum
Not Applicable
Operating Pressure Differential Light Oil - Maximum
100 psi
Operating Pressure Differential Light Oil - Minimum
5 psi
Operating Pressure Differential Natural Gas - Minimum
Not Applicable
Nominal Pipe Size
1 1/4 in
Operating Pressure Differential Air/Inert Gas - Maximum
150 psi
Operating Pressure Differential Water - Maximum
150 psi
Mounting Orientation
Vertical
Operating Pressure Differential Liquid CO2 - Maximum
Not Applicable
Operating Pressure Differential Cryogenic Fluid - Maximum
Not Applicable
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Fuel Oil - Maximum
Not Applicable
Operating Pressure Differential Hot Water - Minimum
Not Applicable
Operating Pressure Differential Fuel Gas - Maximum
Not Applicable
Fluid Temperature - Maximum
180 Degrees F
Operating Pressure Differential Liquid CO2 - Minimum
Not Applicable
Inlet Connection Type
NPTF
Operating Pressure Differential - Minimum
5 psi
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Operating Pressure Differential Fuel Oil - Minimum
Not Applicable
Country of Origin (subject to change)
Mexico
