Item

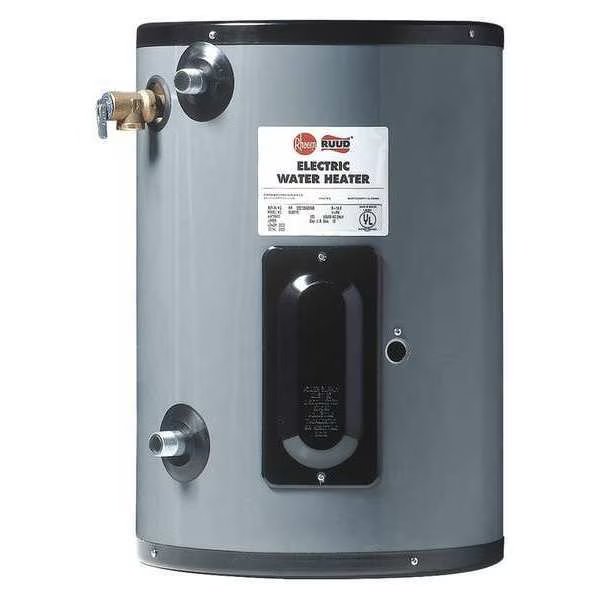

Point-of-Use Electric Water Heater
Height to T and P Opening
23 in
Standards
CSA Certified, UL Listed
Height to Hot Side Connection
23 1/8 in
Compliance
AHRI, Low Lead Compliant, UL
Recovery @ 100 F Rise
24 gph
Item - Water Heaters
Electric Water Heater
Tank Capacity - Plumbing
30.0 gal
Overall Height - Water Heaters
32 in
Water Heater Design
Whole House
Commercial / Residential
Commercial
System of Measurement
Inch
Height to Cold Side Connection
3 in
Includes
Factory-Installed Tu0026P Valve
Recovery @ 140 F Rise
17 gph
Recovery @ 120 F Rise
20 gph
Voltage - Water Heaters
208
Features
Automatic Thermostat, High Efficiency Heating Element, Over Temperature Protector
Temp. Range
110 Degrees to 170 Degrees F
Manufacturers Warranty Length
3 yr Limited Tank, 1 yr Limited Parts
Height to Top of Vent Connection
32
Water Connection
3/4 in NPT
Recovery @ 90 F Rise
27.0 gph
Height to Top of Heater
32
Residential / Commercial
Commercial
Equivalent BtuH
20,473 BtuH
Recovery Rate @ Rise
17 gph @ 140 Degrees F, 20 gph @ 120 Degrees F, 24 gph @ 100 Degrees F, 30 gph @ 80 Degrees F, 41 gph @ 60 Degrees F
Water Connection Location
Side
Thermostat Mounting
Surface
Overall H x Dia.
32 in x 23 in
Tank Insulation Material
Polyurethane
First Hour Rating
Not Applicable
Height to Hot Outlet
23.1 in
Maximum Delivered Temperature
170 Degrees F
Minimum Delivered Temperature
110 Degrees F
Tank Outer Shell Finish
Porcelain Enamel
Maximum Water Pressure
150 psi
Height to T and P Valve
23 in
Maximum Recovery Flow Rate
61 gph @ 40 Degrees F
Included Valves
Temperature and Pressure Relief
Element Material
Copper, Magnesium Oxide
Mounting Type
Wall Mounting
Tank Outer Shell Material
Steel
Included Valve Type
T u0026 P Relief
Manufacturer Warranty Length
3 yr Limited
Country of Origin (subject to change)
Mexico
