Center Line Pipe Center Size
8 1/2
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Item

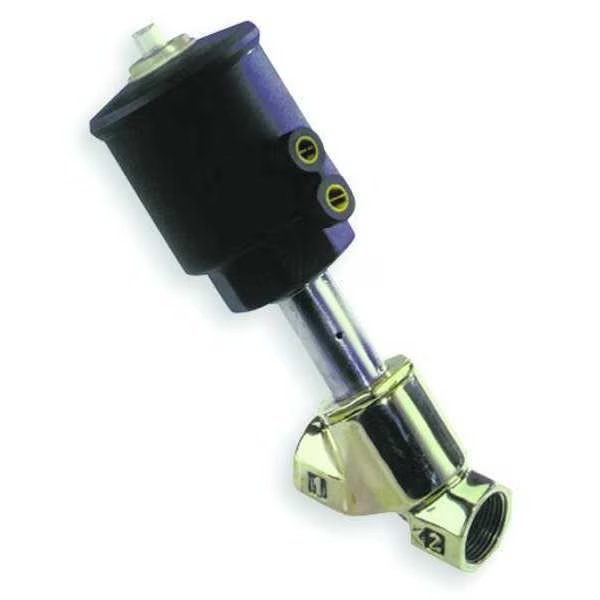

Angle Body Piston Valve
Stem Material
431 Stainless Steel
Min. Operating Pressure Differential
0 psi
Ambient Temp. Range
15 Degrees to 140 Degrees F
Valve Ways and Positions
2-Way/2-Position
Environmental Rating - Valves
Indoor, Outdoor
Max. Fluid Temp.
366 Degrees F
Pipe Size - Valves
1 1/2 in
Body Material - Valves
Bronze
Seal Material - Valves
PTFE
Coefficient of Volume
52.0
Max. Operating Pressure Differential Water
60 psi
Actuator
Pilot Solenoid Valve, Not Included
Max. Pilot Pressure
150 psi
Max. Operating Pressure Differential Steam
60 psi
Min. Pilot Pressure
60 psi
Products By Industry
General Approach
Operating Pressure Differential Steam - Maximum
60 psi
Nominal Pipe Size
1 1/2 in
Inlet Connection Type
NPTF
Operating Pressure Differential - Minimum
0 psi
Pilot Pressure - Minimum
60 psi
Valve Positions
2-Position
Outlet Connection Type
NPTF
Actuator Type
Single Air Pilot
Operating Pressure Differential Water - Maximum
60 psi
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Pilot Pressure - Maximum
150 psi
Ambient Temperature - Maximum
140 Degrees F
Operation Type
Pilot Operated
Coefficient of Volume (Cv)
52
Fluid Temperature - Maximum
366 Degrees F
Valve Starting Configuration
Normally Closed
Environmental Rating
Indoor, Outdoor
Ambient Temperature - Minimum
15 Degrees F
Country of Origin (subject to change)
United States
