Center Line Pipe Center Size
5 3/4
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material
Stainless steel
Item

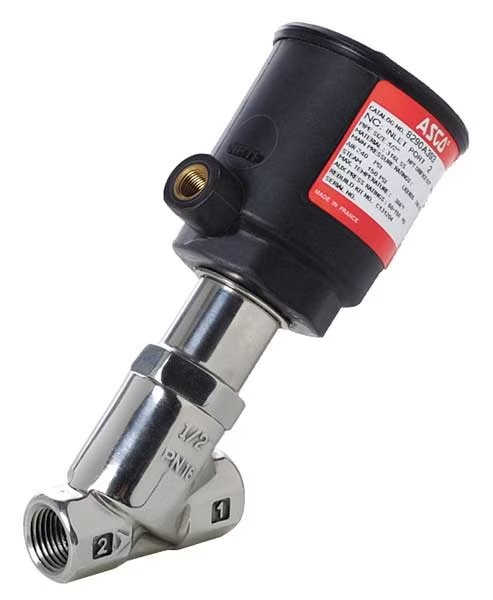

Angle Body Piston Valve
Ambient Temp. Range
15 Degrees to 140 Degrees F
Coefficient of Volume
15.0
Seal Material - Valves
PTFE
Environmental Rating - Valves
Indoor, Outdoor
Max. Fluid Temp.
366 Degrees F
Valve Ways and Positions
2-Way/2-Position
Max. Pilot Pressure
150 psi
Min. Operating Pressure Differential
0 psi
Disc Material
304L Stainless Steel
Max. Operating Pressure Differential Water
90 psi
Stem Material
431 Stainless Steel
Actuator
Pilot Solenoid Valve, Not Included
Max. Operating Pressure Differential Steam
90 psi
Body Material - Valves
316L Stainless Steel
Min. Pilot Pressure
60 psi
Outlet Connection Type
NPTF
Pilot Pressure - Minimum
60 psi
Valve Starting Configuration
Normally Closed
Operating Pressure Differential Water - Maximum
90 psi
Environmental Rating
Indoor, Outdoor
Fluid Temperature - Maximum
366 Degrees F
Valve Positions
2-Position
Operating Pressure Differential - Minimum
0 psi
Ambient Temperature - Minimum
15 Degrees F
For Media
Hot Water, Light Slurries, Solvents, Steam
Coefficient of Volume (Cv)
15
Inlet Connection Type
NPTF
Ambient Temperature - Maximum
140 Degrees F
Operating Pressure Differential Steam - Maximum
90 psi
Actuator Type
Single Air Pilot
Pilot Pressure - Maximum
150 psi
Operation Type
Pilot Operated
Country of Origin (subject to change)
United States
