Center Line Pipe Center Size
9 1/2
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material
Stainless steel
Item

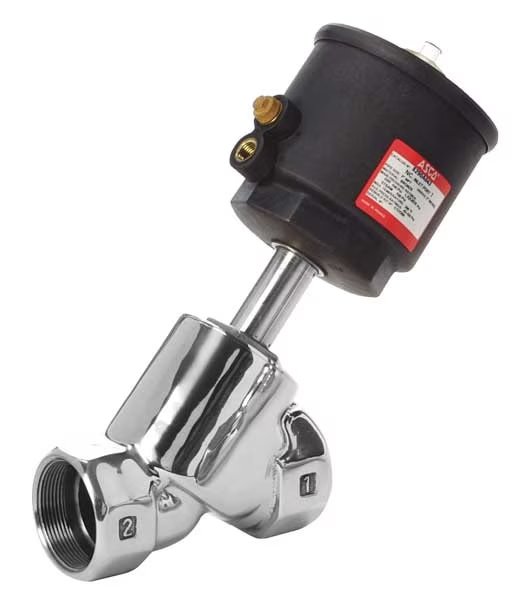

Angle Body Piston Valve
Min. Operating Pressure Differential
0 psi
Max. Fluid Temp.
366 Degrees F
Environmental Rating - Valves
Indoor, Outdoor
Valve Ways and Positions
2-Way/2-Position
Max. Operating Pressure Differential Steam
90 psi
Actuator
Pilot Solenoid Valve, Not Included
Max. Operating Pressure Differential Water
90 psi
Min. Pilot Pressure
60 psi
Coefficient of Volume
68.0
Stem Material
431 Stainless Steel
Ambient Temp. Range
15 Degrees to 140 Degrees F
Seal Material - Valves
PTFE
Max. Pilot Pressure
150 psi
Body Material - Valves
316L Stainless Steel
Disc Material
304L Stainless Steel
Pilot Pressure - Minimum
60 psi
Valve Positions
2-Position
Coefficient of Volume (Cv)
68
Ambient Temperature - Minimum
15 Degrees F
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Operating Pressure Differential - Minimum
0 psi
Environmental Rating
Indoor, Outdoor
Ambient Temperature - Maximum
140 Degrees F
Operation Type
Pilot Operated
Pilot Pressure - Maximum
150 psi
Inlet Connection Type
NPTF
Fluid Temperature - Maximum
366 Degrees F
Outlet Connection Type
NPTF
Operating Pressure Differential Steam - Maximum
90 psi
Operating Pressure Differential Water - Maximum
90 psi
Actuator Type
Single Air Pilot
Valve Starting Configuration
Normally Closed
Country of Origin (subject to change)
United States
