Center Line Pipe Center Size
3 3/16
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material
Stainless steel
Item

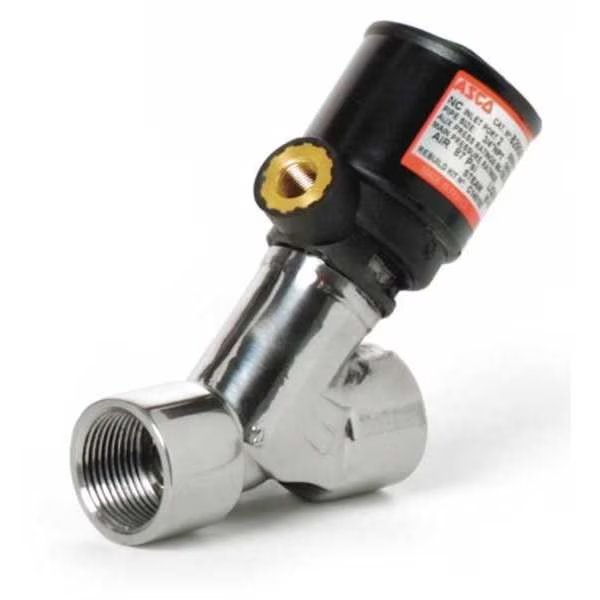

Angle Body Piston Valve
Max. Fluid Temp.
366 Degrees F
Body Material - Valves
316L Stainless Steel
Seal Material - Valves
PTFE
Actuator
Pilot Solenoid Valve, Not Included
Valve Ways and Positions
2-Way/2-Position
Disc Material
304L Stainless Steel
Max. Operating Pressure Differential Steam
150 psi
Stem Material
316L Stainless Steel
Min. Pilot Pressure
60 psi
Max. Pilot Pressure
150 psi
Max. Operating Pressure Differential Water
240 psi
Environmental Rating - Valves
Indoor, Outdoor
Ambient Temp. Range
15 Degrees to 140 Degrees F
Min. Operating Pressure Differential
0 psi
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Coefficient of Volume (Cv)
2.3
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Operating Pressure Differential Steam - Maximum
150 psi
Pilot Pressure - Minimum
60 psi
Valve Positions
2-Position
Ambient Temperature - Minimum
15 Degrees F
Environmental Rating
Indoor, Outdoor
Outlet Connection Type
NPTF
Fluid Temperature - Maximum
366 Degrees F
Actuator Type
Single Air Pilot
Ambient Temperature - Maximum
140 Degrees F
Operating Pressure Differential - Minimum
0 psi
Pilot Pressure - Maximum
150 psi
Operation Type
Pilot Operated
Operating Pressure Differential Water - Maximum
240 psi
Country of Origin (subject to change)
United States
