| Property | Value |
|---|---|
| Item | Power Inverter and Battery Charger |
| Peak Output Power | 1,500 W |
| Continuous Output Power | 750 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Standards | CSA, UL458 |
| Case Material | Polycarbonate |
| Nominal Output Power | 750 W |
| Inverter Height | 7 in |
| Height | 9 |
| Charger Width | 8.8 in |
| Includes | Remote Control Module |
| Automatic/Manual | Automatic |
| Charger Input Voltage | 120V AC |
| Inverter Width | 8.7 in |
| Charger Output Voltage | 120V |
| Charger Height | 7 in |
| Inverter Depth | 9 in |
| Depth | 7 |
| Charger Depth | 9 in |
| Max. Input Current | Full continuous load of 73 A at 12 V DC; 29 A at 120 V AC with full inverter and charger load |
| Width | 8-3/4 |
| Application | Automotive |
| Charger Output Amps | 45 A |
| Features | Automatic Overload, Front Panel Remote Control Connector Enables Remote Off/On Switching with Included Apsrm4 Remote, Load Sensing Control Dial Enables Adjustable Load Threshold Required to Automatically Turn the Inverter On and Off in Dc Mode as Load Conditions Change, Thermal Shutoff |
| Inveter Output Voltage | 120V AC, +/- 5% |
| Output Frequency | 60 Hz |
| Output Voltage | 115VAC |
| Charger DxWxH | 9 in x 8.8 in x 7 in |
| Charger Input Current | 9.3 A |
| Charger Output Current | 45 A |
| Input Voltage | 12VDC |
| Product Line | PowerVerter |
| Product Name | PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets |
| Maximum Frequency | 60 Hz |
| Package Contents | PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets, Remote Control, Remote Battery Temperature Sensor Cable, Instruction Manual with Warranty Information |
| Output Frequency Regulation | 60 Hz (+/- 0.3Hz) |
| Output Receptacles | (2) 5-15R |
| Voltage Compatibility (VDC) | 12 |
| Expandable Runtime | Yes |
| Input Cord Length Details | DC INPUT: User supplies cabling. 6 gauge or larger (see manual) AC INPUT: attached 6ft. AC line cord with plug. |
| Outlet Details | 2 NEMA 5-15R GFCI protected outlets |
| Product Certifications | CSA (Canada); UL 458 |
| Material of Construction | Polycarbonate |
| Nominal Output Voltage(s) Supported | 120V |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line Source. Inverter Power (AC) Maintains PWM sine wave output voltage of 120 VAC (+/- 5%) |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical -compatible with many computers, servers and networking equipment-verify transfer time compatibility loads for UPS applications) |
| AC Suppression Joule Rating | 450 |
| Unit Dimensions (hwd / in.) | 7.000 x 8.750 x 9.000 |
| Switches | 3 position on / off remote switch enables simple on / off power control plus |
| Package Includes | UT750UL Inverter/Charger;APSRM4 Remote;Instruction manual with warranty information |
| Relative Humidity | 0%-95% Non-Condensing |
| Frequency Compatibility | 60 Hz |
| High Voltage Transfer to Battery Power | In AC |
| Voltage Compatibility (VAC) | 120 |
| Load Sensing | Load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level. |
| Battery Charge | 11A / 45A (selectable) |
| Low Voltage Transfer to Battery Power | In AC |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface. (see manual for additional mounting information) |
| Receptacle Color | White |
| Overload Protection | Includes 10A input breaker dedicated to the charging system and 12A output breaker for AC output loads. |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load of 73A at 12 VDC. AC INPUT 29 amps at 120 VAC with full inverter and charger load (9.3A max charger only / combined input load to support charger and AC output is automatically controllable to 66% - 33% - 0% based on AC) |
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 73A for the required Duration (when used at full continuous capacity- DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120VAC recommended. |
| Front Panel LEDs | Set of (6) LEDs offer continuous status information on load percentage ( 6 levels reported) and battery charge level (7 levels reported) See manual for sequences |
| DC System Voltage (VDC) | 12 |
| Cooling Method | Fan |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

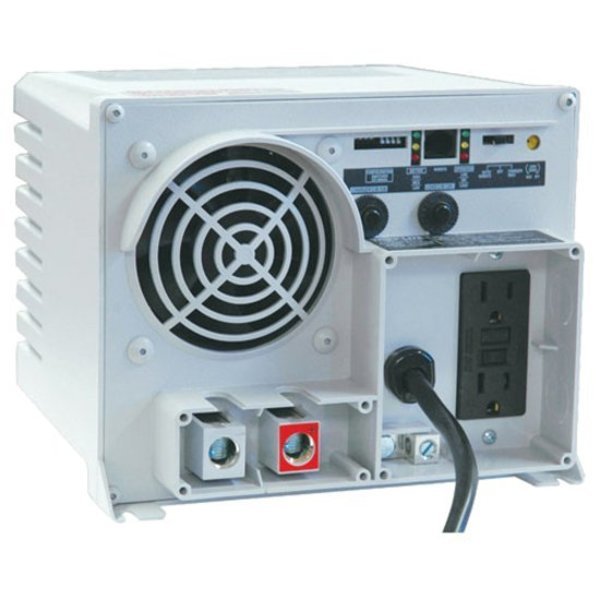

Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 2 Outlets, Tripp Lite, Mfr#: UT750UL
$741.99
Free shipping will be applied on orders over $50
Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection Input Terminals, Peak Output Power 1,500 W, Number of Outlets 2, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application Automotive
9999 in stock
