Item

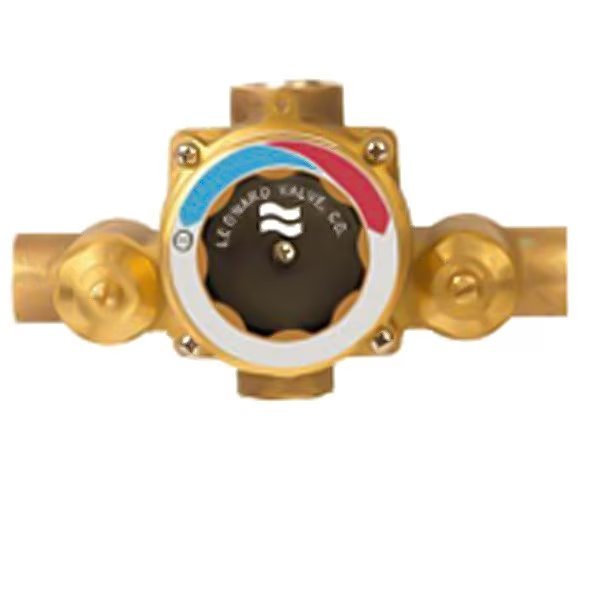

Thermostatic Mixing Valve
Temp. Range
Up to 120 Degrees F
Includes
Check-stops, Wall Support
Connection Size - Inlet
3/4 in
Connection Size - Outlet
3/4 in
Outlet Connection Size
3/4 in
Operating Temperature - Maximum Outlet
120 Degrees F
Outlet Connection Type
Sweat
Inlet Temperature - Maximum Hot
200 Degrees F
Coefficient of Volume (Cv)
Not Applicable
Operating Pressure - Maximum
125 psi
Inlet Connection Size - Cold
3/4 in
Inlet Temperature - Minimum Hot
120 Degrees F
For Media
Hot Water, Water
Inlet Connection Size - Hot
3/4 in
Operating Temperature - Minimum Outlet
65 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Includes Temperature Gauge
Temperature Gauge Included
Inlet Connection Type - Cold
Sweat
Inlet Temperature - Maximum Cold
70 Degrees F
Inlet Connection Type - Hot
Sweat
Operating Pressure - Minimum
30 psi
Country of Origin (subject to change)
United States
