Ball Material
316 Stainless Steel
Stem Material
316 Stainless Steel
Body Material
Glass-Filled Polypropylene
Item

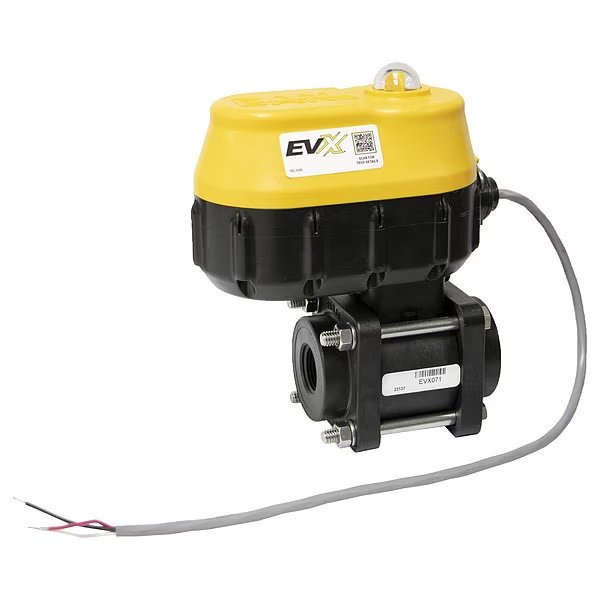

Electrically Actuated Two-Way Ball Valve
Temp. Range
0 Degrees to 150 Degrees F
Connection Type - Side 1
NPT
Actuator Motor Type
Reversing
Connection Size - Side 1
3/4 in
Connection Gender - Side 1
Female
For Media
Corrosive Chemicals, Water
Actuator Features
Internally Fused/Automatic Reset, Position Indicator
3-A Standard Compliance
Not Rated
Ball Port Style
Standard Port
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
Connection Size - Side 2
3/4 in
Maximum Pressure - Operating
300 psi
Special Features
Not Applicable
Actuator Cycle Time - 90 Degrees
0.75 sec
Maximum Pressure - Steam
Not Applicable
Actuator Enclosure Material
Plastic
Valve Deactivated State
Normally Closed (NC)
Maximum Operating Pressure Differential
300 psi
Valve Construction
Three-Piece
Coefficient of Volume (Cv)
Not Applicable
Pipe Schedule Compatibility
Not Applicable
Actuator Operation
90 Degrees
Operating Temperature - Maximum
150 Degrees F
Fail Safe Position
Fail Last
Operating Temperature - Minimum
0 Degrees F
NSF Certifications for Food and Drinking Water
Not Applicable
Country of Origin (subject to change)
United States
