Contents
25% Zinc, 30% Copper, 45% Silver
Standards
ANSI/AWS A5.8, ASME SFA 5.8, QQ-B-654A Class BAg-5, ISO 17672 Ag 245, QQ-B-654a BAg-5
Application
General Purpose Filler for Steel and Copper Alloys
Brazing Range (F)
1225 to 1370
Material

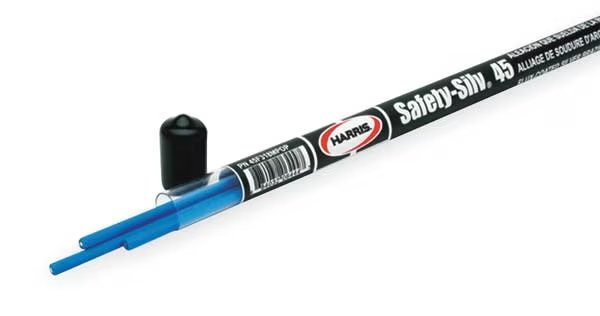

Safety-Silv-45 Flux Coated
Finish/Coating
Flux-Coated
Compatible Chuck Size
1,370 Degrees F
For Joining
Brass to Steel, Copper to Stainless Steel, Copper to Steel, Stainless Steel to Stainless Steel, Stainless Steel to Steel, Steel to Steel
Flux Application
Flux Not Required
Brazing Temperature Range
1,370 Degrees F to 1,550 Degrees F
Capacity Shingles
1,550 Degrees F
Joining Applications
Brass to Stainless Steel, Brass to Steel, Copper to Stainless Steel, Copper to Steel, Stainless Steel to Stainless Steel, Stainless Steel to Steel, Steel to Steel
Alloy Composition
45% Silver, 30% Copper, 25% Zinc
For Metal Type
Brass to Stainless Steel, Brass to Steel, Copper to Stainless Steel, Copper to Steel, Stainless Steel to Stainless Steel, Stainless Steel to Steel, Steel to Steel
Maximum Brazing Temperature
1,550 Degrees F
Minimum Brazing Temperature
1,370 Degrees F
Minimum Soldering Temperature
1,370 Degrees F
Country of Origin (subject to change)
United States
