| Max. Pressure | 145 psi |
| Application | Air, Non-Potable Water |
| Specific Fitting Shape | 90 Degrees Bulkhead Elbow Adapter |
| Standards | RoHS |
| Item | Bulkhead Union Elbow |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Tube Size | 1/2 in |
| Temp. Range | 23 Degrees to 140 Degrees F |
| Color | White |
| Basic Material | Plastic |
| Pipe Size | 1-12 |
| Hex Size | 1 1/8 in |
| Body Material | Polybutylene Terephthalate |
| Fittings Sub-Category | Elbows |
| Overall Length | 43 3/16 mm |
| Pipe Size - Pipe Fitting | 1-12 |
| Maximum Operating Temperature | 140 Degrees F |
| Maximum Operating Pressure | 145 psi |
| Fitting Side A Tube Outer Diameter | 1/2 in |
| Minimum Operating Temperature | 41 Degrees F |
| Fitting Material | Brass |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Fitting Side B Tube Outer Diameter | 1/2 in |
| Release Type | Button |
| System of Measurement | Imperial |
| Fitting Side A Connection Type | Push-to-Connect |
| Includes Pre-Applied Thread Sealant | No |
| Fitting Side B Connection Type | Push-to-Connect |
| For Tube Outside Diameter | 1/2 in |
| End Connection Type | Push-to-Connect |
| Fitting Shape | Elbow |
| Fitting Body Material | Brass |
| For Tube OD | 1/2 in x 1/2 in |
| Country of Origin (subject to change) | Singapore |
| Package Quantity | 1 |

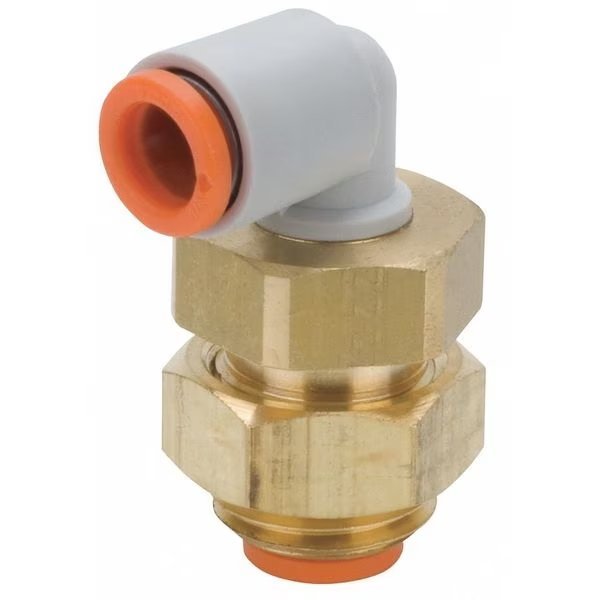

Bulkhead Union Elbow, 90 Deg, 1/2 in.Tube, SMC, Mfr# KQ2LE13-00A
$26.67
Free shipping will be applied on orders over $50
Bulkhead Union Elbow, Application Air, Non-Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Fitting Material Brass, Color White, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 43 3/16 mm, Specific Fitting Shape 90 Degrees Bulkhead Elbow Adapter
9999 in stock
Must order in multiples of 1
Subtotal:
$26.67
