Max. Pressure | 250 psi |
Application | Air |
Specific Fitting Shape | Straight Bulkhead Union |
Tube Fitting Material | Brass |
Item | Bulkhead Union |
Basic Material | Metal |
Pipe Fitting Connection Type | Tube |
Connection Type | Push-to-Connect x Push-to-Connect |
Basic Pipe Fitting Shape | Union |
Fittings Sub-Category | Unions |
Basic Pipe Fitting Material | Metal |
Specific Pipe Fitting Shape | Bulkhead Union |
Tube Size | 3/8 in |
Temp. Range | 0 Degrees to 160 Degrees F |
Body Material | Nickel Plated Brass |
Color | Silver |
Overall Length | 1 3/4 in |
Standards | ISO 14743:2004, PED 2014/68/UE, REACH 1907/2006, RoHS 2011/65/CE, Silicone Free Certified |
Includes Pre-Applied Thread Sealant | Yes |
Finish/Coating | Nickel Plated |
Fitting Side B Tube Outer Diameter | 3/8 in |
Thread Sealant Type | NBR70 |
Minimum Operating Temperature | 0 Degrees F |
Fitting Side B Connection Type | Push-to-Connect |
Fitting Side A Tube Outer Diameter | 3/8 in |
Fitting Material | Brass |
System of Measurement | Imperial |
Maximum Operating Temperature | 160 Degrees F |
Fitting Side A Connection Type | Push-to-Connect |
Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
Maximum Operating Pressure | 290 psi |
For Tube Outside Diameter | 3/8 in |
End Connection Type | Push-to-Connect |
For Tube OD | 3/8 in x 3/8 in |
Fitting Body Material | Nickel Plated Brass |
Fitting Shape | Union |
Country of Origin (subject to change) | Italy |
Package Quantity | 10 |

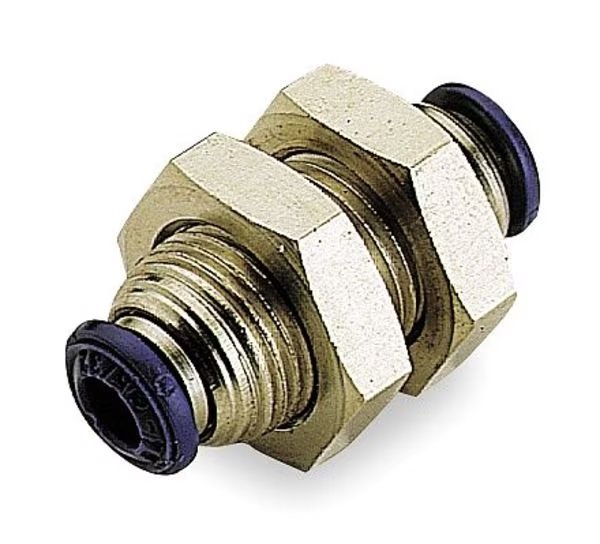

Bulkhead Union, 3/8 In, NP Brass, PK10, AIGNEP USA, Mfr# 88050-06
$96.02
Free shipping will be applied on orders over $50
Bulkhead Union, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Material Brass, Color Silver, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 160 Degrees F, Overall Length 1 3/4 in, Specific Fitting Shape Straight Bulkhead Union
9999 in stock
Must order in multiples of 1
Subtotal:
$96.02
