| Item | Radial Ball Bearing |
| Single Row/Double Row | Single Row |
| Bearing Type | Double Shield |
| Seal/Shield Type | Double Sealed |
| Bore Dia. | 20 mm |
| Cage Material | Steel |
| Outside Dia. | 52 mm |
| Width | 22.2 mm |
| Temp. Range | -13 Degrees to 250 Degrees F |
| Industry Number | 63304LLBC3 |
| Seal Material | Nitrile Rubber |
| Bore Tolerance | +0/-0.01mm |
| Static Load Capacity | 1,770 lb |
| Lubrication | Polyrex EM Grease |
| Max. RPM | 14,000 RPM |
| Bearing Material | Steel |
| ABEC Tolerance | 1 |
| Outside Dia. Tolerance | +0/-0.013mm |
| Dynamic Load Capacity | 3,600 lb |
| Ball Material | Alloy Steel |
| Minimum Temperature | -40 Degrees C |
| Outer Ring Width | 22.2 mm |
| Outside Diameter Tolerance | +0/-0.013 mm |
| Number of Rows | One |
| Maximum Temperature | 120 Degrees C |
| Outside Diameter | 52 mm |
| Lubricant Material | Polyrex EM |
| Cage Type | Pressed |
| Retaining Ring Thickness | Not Applicable |
| Bore Diameter | 20 mm |
| System of Measurement | Metric |
| Bore Diameter Tolerance | +0/-0.01 mm |
| Includes Retaining Ring | No |
| Maximum Speed | 14,000 RPM |
| Static Radial Load Capacity | 7,900 N |
| Closure & Seal Type | Double Sealed - Non-Contact Seal |
| ISO Rating | Class 0 |
| Bearing Industry Number | 63304 |
| Retaining Ring Groove | No |
| Fillet Radius | 1.1 mm |
| Seal Type | Non-Contact |
| Retaining Ring Diameter | Not Applicable |
| Ring Material | Alloy Steel |
| Dynamic Radial Load Capacity | 3,500 N |
| Finish | Chrome Plated |
| Closure | Double Sealed |
| ABEC Rating | 1 |
| Type | Double Seal |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |

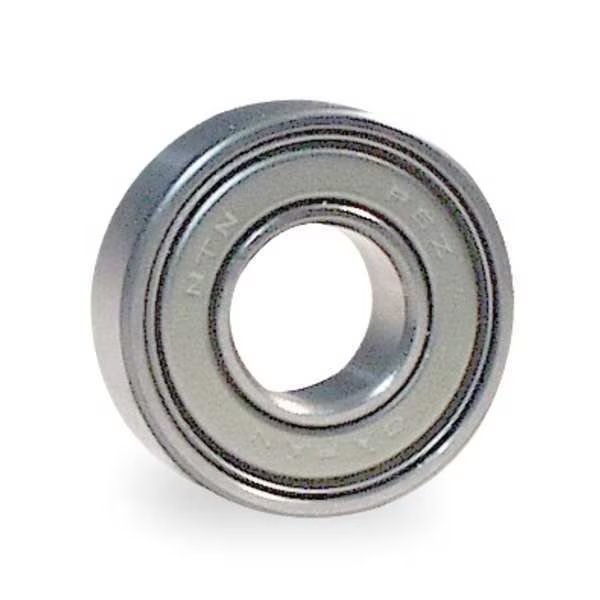

Cartridge Bearing, Double Seal, 20mm Bore, NTN, Mfr# 63304LLBC3/L627
$34.43
Free shipping will be applied on orders over $50
Radial Ball Bearing, Bearing Industry Number 63304, Bore Diameter 20 mm, Closure Double Sealed, Outer Ring Width 22.2 mm, Outside Diameter 52 mm, Ring Material Alloy Steel, Seal Type Non-Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.01 mm, Cage Type Pressed, Dynamic Radial Load Capacity 3,500 N, Fillet Radius 1.1 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0
9999 in stock
Must order in multiples of 1
Subtotal:
$34.43
