Item

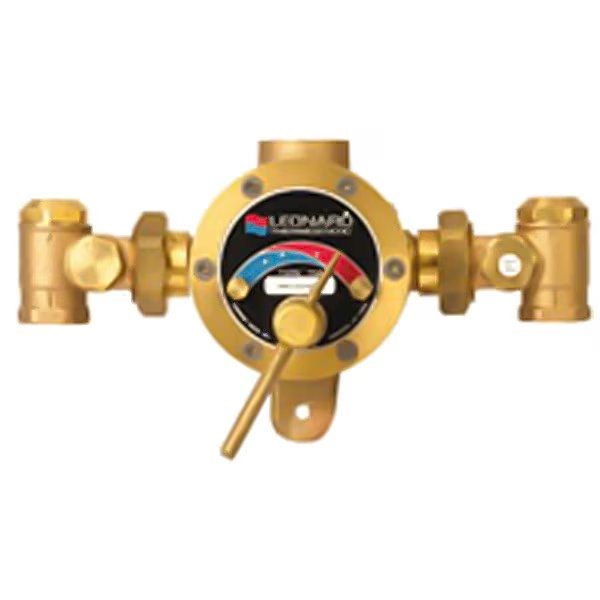

Thermostatic Mixing Valve
Body Material
Brass, Bronze, Stainless Steel
Temp. Range
42 Degrees to 200 Degrees F
For Use With
Low Temperature and Industrial Application
Operating Pressure - Minimum
30 psi
Inlet Connection Size - Hot
1 in
Coefficient of Volume (Cv)
Not Applicable
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Hot
120 Degrees F
Operating Temperature - Minimum Outlet
65 Degrees F
Operating Pressure - Maximum
125 psi
Inlet Connection Size - Cold
1 in
Inlet Temperature - Maximum Hot
200 Degrees F
Outlet Connection Size
1 1/4 in
Inlet Temperature - Maximum Cold
70 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Temperature - Maximum Outlet
180 Degrees F
Outlet Connection Type
NPT
Country of Origin (subject to change)
United States
