| Property | Value |
|---|---|
| Item | Miniature Circuit Breaker |
| Series | HOMT |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Tandem |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |

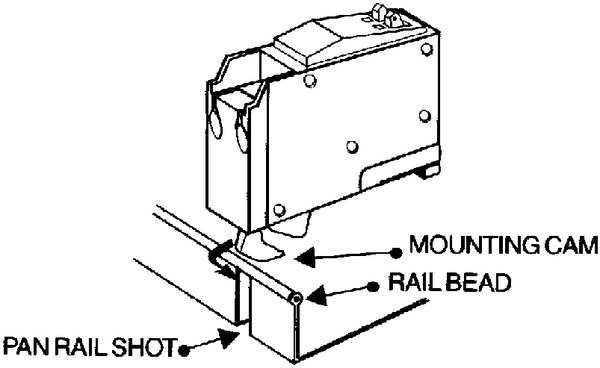

| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | 100A/HOM |
| Width | 1 in |
| Depth | 2.98 in |
| Height | 3.13 in |
| DC Voltage Rating | Not Rated |
| For Use With | Homeline Load Center |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 8 AWG |
| Standards | CSA Certified, HACR, UL Listed |
| Application | HACR rated Applications |
| Features | Mercury Free |
| Max. Operating Temp. | 104 Degrees F |
| Compatible Panelboard/Load Center Series | HOM |
| Min. Operating Temp. | 104 Degrees F |
| Length (Straight Wireway) | 3.13 in |
| Tightening Torque | 35.40 lbf.in (4.0 N.m) 0.00 to 0.01 inΓΒ² (2.5 to 6 mmΓΒ²) (AWG 14 to AWG 8) |
| Certifications | UL Listed |
| Wire Size | 1 x AWG 14 to AWG 8 ( aluminium/copper ) |
| Short Circuit Current Rating | 10 kA |
| Ratings | HACR rated |
| Ambient Air Temperature For Operation | 104Β°F (40Β°C) |
| Length | 3.13 in |
| Voltage | 120/240 VAC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
Miniature Circuit Breaker, HOMT Series, 20A, 1 Pole, 120/240V AC, 10kA at 120/240V AC, Square D, Mfr#: HOMT2020
$14.13
Free shipping will be applied on orders over $50
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Tandem, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Lug, Frame Size 100A/HOM, Length 3.13 in, Width 1 in, Depth 2.98 in, Min. Operating Temp. 104 Degrees F
9999 in stock
Subtotal:
$14.13
