Item | Condensate Removal Pump |
Pump Type | Plenum Rated, Standard |
Standards | CSA/UL |
Cord Length | 14 ft |
Amps | 6.7 A |
Discharge Connection | 3/8 in Barbed |
Intake Connection Style | Open |
Plenum Rated | Yes |
Maximum Flow Rate @ 40 Feet of Head | 6.3 gpm |
Discharge Connection Style | Barbed |
Series Family | HT-VCL |
Frequency | 60 Hz |
Maximum Flow Rate @ 25 Feet of Head | 8 gpm |
Tank Capacity | 1 gal |
Maximum Media Temperature | 212 Degrees F |
Maximum Flow Rate @ 50 Feet of Head | 4.4 gpm |
Maximum Flow Rate @ 1 Feet of Head | 9.6 gpm |
Overall Width | 6 in |
Horsepower | 1/3 hp |
Intake Connection | 1 1/16 in Open |
Shut Off Level | 1.4 in |
Maximum Flow Rate @ 5 Feet of Head | 9.6 gpm |
Maximum Flow Rate @ 30 Feet of Head | 7.5 gpm |
Manufacturer Warranty Length | 2 yr |
Compatible Discharge Pipe Size | 3/8 in |
Turn On Level | 3.4 in |
Maximum Feet of Head | 60 ft |
Maximum Flow Rate @ 20 Feet of Head | 8.4 gpm |
Pump Housing Material | Polypropylene |
Nameplate Voltage | 115V AC |
Overall Height | 11.7 in |
Compatible Intake Pipe Size | 1 1/16 in |
Maximum Operating Pressure | 26.9 psi |
Series | HT-VCL-60-P |
Maximum Flow Rate @ 15 Feet of Head | 8.8 gpm |
Maximum Flow Rate @ 10 Feet of Head | 9.3 gpm |
Overall Length | 12 in |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

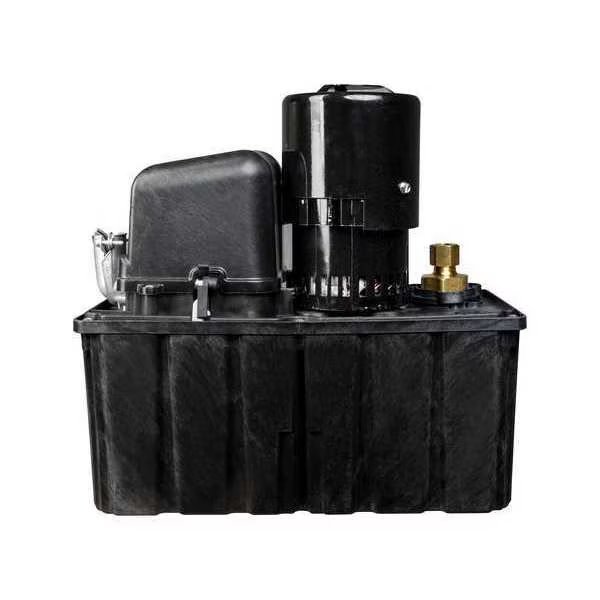

Condensate Pump, 1 gal, 1/3 hp, 115V AC, LITTLE GIANT PUMP, Mfr# 553160101
$487,99
Free shipping will be applied on orders over $50
Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/3 hp, Intake Connection Style Open, Maximum Feet of Head 60 ft, Maximum Flow Rate @ 10 Feet of Head 9.3 gpm, Maximum Flow Rate @ 15 Feet of Head 8.8 gpm, Maximum Flow Rate @ 1 Foot of Head 9.6 gpm, Maximum Flow Rate @ 20 Feet of Head 8.4 gpm, Maximum Media Temperature 212 Degrees F, Nameplate Voltage 115V AC, Plenum Rated Yes, Pump Type Plenum Rated, Standard, Series HT-VCL-60-P, Series Family HT-VCL, Shut Off Level 1.4 in
9999 in stock
Must order in multiples of 1
Subtotal:
$487.99
