Housing Material - Pumps
Polypropylene
Diaphragm Material - Pumps
Santoprene(R)
Item - Air Operated Pumps

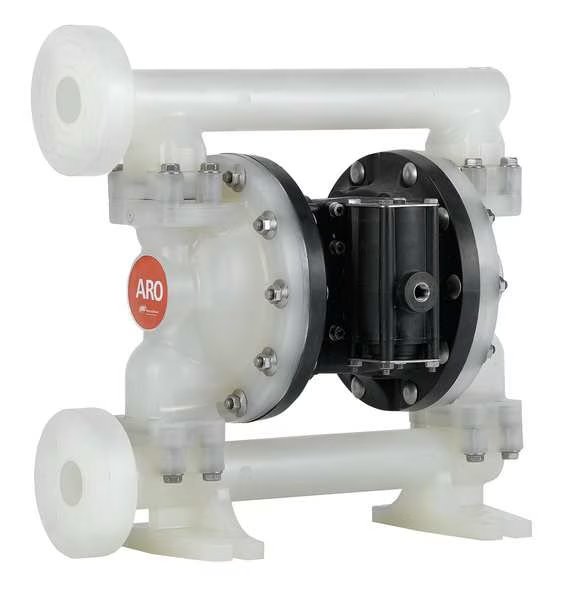

Double Diaphragm Pump
Max. Temp - Pumps
150 Degrees F
Air Inlet Size
1/4 in FNPT
Agency Compliance
CE, REACH, RoHS
Body Material
Polypropylene
Manifold Connection
Single Port
Operation Type
Air Operated
Item
Double Diaphragm Pump
Check Seat Material
Polypropylene
Manufacturers Warranty Length
5 yr
Diaphragm Material
Santoprene
Max. Operating Pressure
120 psi
Ball Material
Santoprene(R)
Flow Rate (Maximum)
51.5 gpm
Air Consumption (Maximum)
50 scfm
Operating Pressure (Maximum)
120 psi
Non-Wetted Housing Material
Plastic
Solid Diameter (Maximum)
0.13 in
Media Discharge Connection Type
Flange
Fluid Discharge Connection
1 in Flange
Air Intake Pressure (Maximum)
120 psi
Flow Rate @ 60 psi
37.2 gpm
Media Temperature (Maximum)
225 Degrees F
Manifold Connection Type
Flange
Wetted Housing Material
Polypropylene
Media Discharge Location
Center, Side
Air Intake Connection Size
1/4 in
Flow Rate @ 10 psi
Not Applicable
Flow Rate @ 90 psi
48.6 gpm
Feet of Head (Maximum)
289 ft
Media Intake Connection Type
Flange
Mounting Hardware Material
Stainless Steel
Flow Rate @ 80 psi
45.75 gpm
Flow Rate @ 50 psi
31.5 gpm
Media Discharge Type
Flange
Media Temperature (Minimum)
-40 Degrees F
Air Intake Connection Type
Flange
Flow Rate @ 15 psi
Not Applicable
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in
Fluid Connection Size
1 in
Flow Rate @ 100 psi
50.5 gpm
Fluid Connection Type
Flange
Flow Rate @ 120 psi
51.5 gpm
Housing Material
Polypropylene
Viscosity (Maximum)
40,000 cps
Flow Rate @ 20 psi
Not Applicable
For Use With Potable Systems
Yes
Overall Size
14.2 in x 11 in x 14.8 in
Media Intake Location
Side
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Fluid Intake Connection
1 in Flange
Flow Rate @ 30 psi
Not Applicable
Country of Origin (subject to change)
United States
