Item

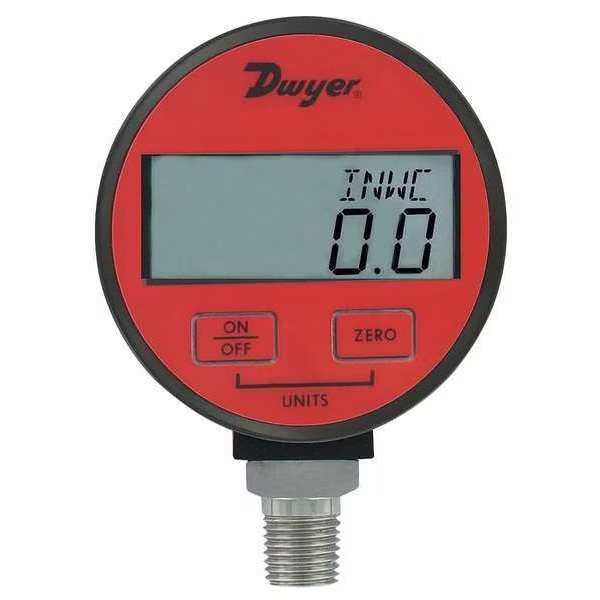

Digital Industrial Vacuum Gauge
Connection Location
Bottom
Gauge Application
For Dry Air u0026 Gases
Digital Pressure and Vacuum Gauge Type
Digital Vacuum Gauge
Application
OEM Applications, Process Industries
Gauge Primary Range Values
-30 to 0
Gauge Primary Range Units
in Hg
Gauge Connection Type
MNPT
Gauge Connection Size
1/4 in
Basic Gauge Case Material
Plastic
Gauge Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
1 yr
Gauge Operating Temp. Range
30 Degrees to 120 Degrees F
Basic Gauge Wetted Parts
Stainless Steel
Digital Gauge Accuracy
+/-1.00% of Reading
Gauge Connection Location
Bottom
Socket Material
316L Stainless Steel
Calibration Certificate
No
Digital Gauge Display Units
bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig
Display Units
bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psig
Pressure Range
-30 to 0 in Hg/psi
Process Connection
1/4 in NPT Male
Standards
CE Certified, RoHS, Russian GOST Certification
Process Connection Gender
Male
Compatible Process Media
Air and Compatible Gases
Gauge Wetted Parts
Stainless Steel / Silicon
Includes Calibration Certificate
No
Pressure Gauge Type
Industrial Pressure Gauge
Process Temperature Range
30 Degrees to 120 Degrees F
Primary Display Range
-30 to 0
Process Connection Type
NPT
Display Resolution
0.01 psi
Includes Mounting Hardware
No
Nominal Dial Size
2 1/2 in
Temperature Error
0.05% Degrees F
Process Connection Location
Bottom
Primary Display Units
in Hg/psi
Manufacturer Warranty Length
1 yr
Pressure Range Type
Compound
Hazardous Location Rating
Not Rated
Process Connection Size
1/4 in
Display Range
-1.013 to 0 bar, -1.033 to 0 kg/cm², -101.4 to 0 kpa, -1013 to 0 mbar, -1034 to 0 cm wc., -235.2 to 0 oz/in², -29.93 to 0 in Hg, -33.94 to 0 ft wc., -407.3 to 0 in wc., -761 to 0 mm Hg, 30 to 0 in Hg
Country of Origin (subject to change)
United States
