Item

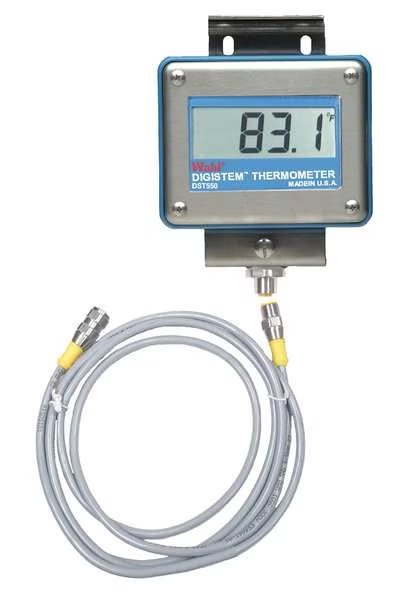

Digital Process Thermometer
Temp. Range (F)
-328 Degrees to 1472 Degrees
Response Time
1 Second Standard, Adjustable .25 Second Intervals From .25 to 10 Seconds
Temp. Range (C)
-200 Degrees to 800 Degrees
Temp. Accuracy
+/- 0.1 Degrees F/C for 1 Year Period At Ambient Temp 23 Degrees C +/- 5 Degrees C
Case Material
Stainless Steel
Probe Connector
Quick Disconnect
Accuracy
+/-0.1 Degrees F/ +/-0.1 Degrees C
Mounting
Wall Mount Remote
Standards
3-A Sanitary Standard 74-03 Authorization When Used With Wahl Sanitary Process Connection Probes
Process Connection
1/2 in FNPT with 4 m Cable
Includes
Probe and Wall Mount
Electrical Connections
None
Safety Rating
Intrinsically Safe
Manufacturers Warranty Length
2 yr
Features
Min/Max Temp Switch
Probe Technology
RTD Probe
Housing Material
304 Stainless Steel
Includes NIST-Traceable Certificate
No
Thermometer Type
Water-Resistant Stem Mount Digital Thermometer
Digital Display
1 1/4 in H x 3 3/8 in W Display with 4-Digit LCD - 1 in Digit Height
Mounting Style
Wall Mount Remote
Maximum Temperature C
800 Degrees C
Resolution
0.1 Degrees F/0.1 Degrees C
Mounting Hole Diameter
0.25 in
Temperature Resolution F
0.1 Degrees F
Power Source Details
3.6V Lithium Thionyl Chloride
Temperature Range
-328 Degrees to 1472 Degrees F/-200 Degrees to 800 Degrees C
Lens Material
Polycarbonate
Display Size
1 1/4 in H x 3 3/8 in W
Construction
304 Stainless Steel Housing with Polycarbonate Lens
Maximum Temperature F
1,472 Degrees F
Minimum Temperature C
-200 Degrees C
Minimum Temperature F
-328 Degrees F
Temperature Scale
Fahrenheit/Celsius
Temperature Resolution C
0.1 Degrees C
Battery Type
(1) Lithium Thionyl Chloride C
Manufacturer Warranty Length
2 yr
Minimum Temperature °C
-200 Degrees C
Maximum Temperature °C
800 Degrees C
Minimum Temperature °F
-328 Degrees F
Maximum Temperature °F
1,472 Degrees F
Temp. Range
-328 Degrees to 1472 Degrees F(-200 Degrees to 800 Degrees C)
Minimum Temperature °C
-200 Degrees C
Minimum Temperature °F
-328 Degrees F
Maximum Temperature °F
1,472 Degrees F
Maximum Temperature °C
800 Degrees C
Country of Origin (subject to change)
United States
