Housing Material - Pumps
Polypropylene
Diaphragm Material - Pumps
Santoprene(R)

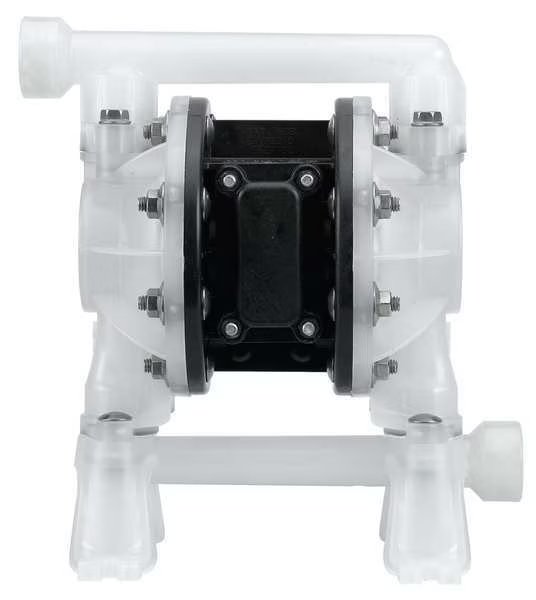

Item - Air Operated Pumps
Double Diaphragm Pump
Max. Temp - Pumps
150 Degrees F
Air Inlet Size
1/4 in FNPT
Agency Compliance
CE, REACH, RoHS
Manufacturers Warranty Length
5 yr
Max. Operating Pressure
100 psi
Diaphragm Material
Santoprene
Ball Material
Santoprene(R)
Operation Type
Air Operated
Body Material
Polypropylene
Item
Double Diaphragm Pump
Check Seat Material
Polypropylene
Manifold Connection
Single Port
Mounting Hardware Material
Stainless Steel
Air Consumption (Maximum)
20 scfm
Fluid Discharge Connection
3/4 in NPTF
Housing Material
Polypropylene
Non-Wetted Housing Material
Plastic
Flow Rate @ 70 psi
15.5 gpm
Viscosity (Maximum)
15,000 cps
Solid Diameter (Maximum)
0.13 in
Fluid Intake Connection
3/4 in NPT
Flow Rate @ 80 psi
15.9 gpm
Wetted Housing Material
Polypropylene
Flow Rate @ 90 psi
16.1 gpm
Flow Rate @ 40 psi
12.5 gpm
Media Discharge Connection Size
3/4 in
Media Temperature (Maximum)
225 Degrees F
Media Discharge Connection Type
NPTF
Feet of Head (Maximum)
230 ft
For Use With Potable Systems
Yes
Fluid Connection Size
3/4 in
Flow Rate @ 60 psi
14.9 gpm
Flow Rate @ 120 psi
Not Applicable
Media Intake Connection Size
3/4 in
Flow Rate (Maximum)
16.3 gpm
Operating Pressure (Maximum)
100 psi
Overall Size
9.3 in x 6.7 in x 11.9 in
Flow Rate @ 10 psi
Not Applicable
Flow Rate @ 30 psi
Not Applicable
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Air Intake Connection Type
NPT
Flow Rate @ 15 psi
Not Applicable
Air Intake Pressure (Maximum)
100 psi
Flow Rate @ 20 psi
Not Applicable
Media Intake Location
Side
Air Intake Connection Size
1/4 in
Media Discharge Location
Side
Media Temperature (Minimum)
-40 Degrees F
Flow Rate @ 100 psi
16.3 gpm
Media Discharge Size
3/4 in
Media Intake Connection Type
NPT
Manifold Connection Type
NPT
Country of Origin (subject to change)
United States
