Specific Fitting Shape

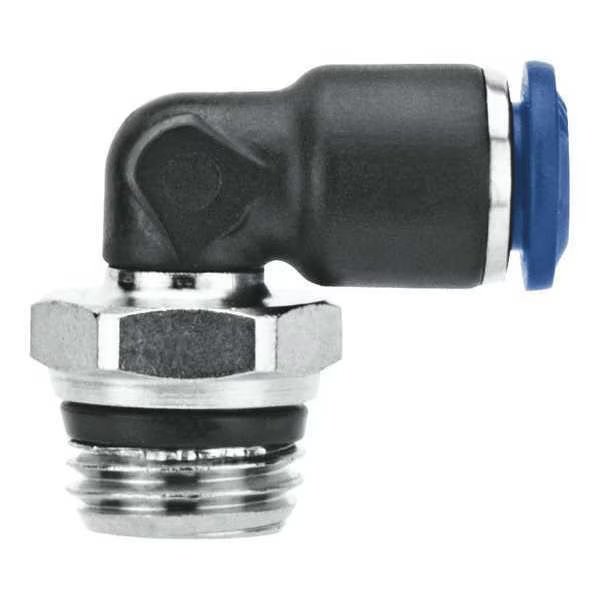

90 Degrees Elbow Adapter
Connection Type
Push-to-Connect x Universal
Fittings Sub-Category
Elbows
Temp. Range
0 Degrees to 160 Degrees F
Basic Material
Plastic/Metal Combination
Compliance
EN331, REACH, ROHS
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Pipe Size - Pipe Fitting
3/8 in
Standards
ISO 14743:2004, PED 2014/68/UE, REACH 1907/2006, RoHS 2011/65/CE, Silicone Free Certified
Fitting Thread Size
3/8-18
Release Ring Material
NBR70
Maximum Operating Pressure
250 psi
Fitting Side A Connection Type
Push-to-Connect
Fitting Side A Tube Outer Diameter
3/8 in
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Maximum Operating Temperature
160 Degrees F
System of Measurement
Imperial
Fitting Side B Connection Type
Universal
Fitting Side B Pipe Size
3/8 in
Includes Pre-Applied Thread Sealant
Yes
Minimum Operating Temperature
0 Degrees F
Fitting Body Material
Nylon
End Connection Type
Barbed, Push-to-Connect, Threaded
For Tube Outside Diameter
3/8 in
Country of Origin (subject to change)
Italy
