For Use With
GPI 118000-1, P-120H-2UR
Housing Material
Polyethylene
Application
Agricultural Chemicals Transfer
Wetted Materials
316 Stainless Steel, PBT Polyester
Type
Agricultural Chemical
Item

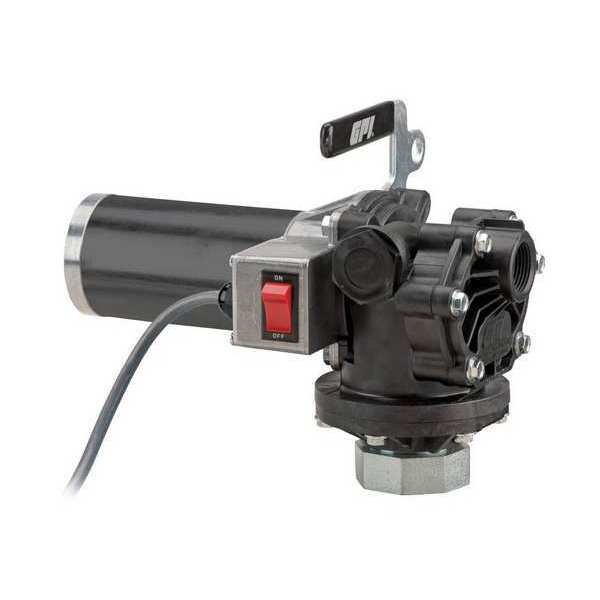

Electric Operated Drum Pump
Gasket Material
Fluorocarbon
Suction Tube Type
Plastic Adjustable
Max. Liquid Temp.
120 Degrees F
Discharge Tube Outlet ID Size
1
Manufacturers Warranty Length
2 yr.
Pump Body Material
Polyethylene
For Container Type
Drum, Tote
Discharge Tube Outlet ID
1 in
Height Above Container
11 in
Diesel Exhaust Fluid Compatible
No
Compatible Chemicals
Automatic Transmission Fluid, Brake Fluid, Deionized Water, Fresh Water, Fungicides, Herbicides, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Pesticides, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid
For Container Size
55 gal, 275 gal, 330 gal
Includes Discharge Hose
No
Discharge Connection Type
NPT
Discharge Tube Outlet OD
1 in
Min. Fluid Temp.
-20 Degrees F
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Biodiesel, DEF, Diesel Fuel, E85, Fertilizers, Formaldehyde, Formaldehyde 40%, Gasoline, Heptane, Hexane, Hydrazine, Kerosene, Lacquer Thinners, Lithium Grease, Methyl Chloride, Naphtha, Paint, Paint Thinner, Potassium Hydroxide (50%), Salt Water, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
For Media Type
Automatic Transmission Fluid, Brake Fluid, Fungicides, Herbicides, Hydraulic Oil, Motor Oil, Pesticides, Stoddard Solvent, Water, Windshield Washer Fluid
Max. Fluid Temp.
120 Degrees F
Features
12 GPM (45L/min), 12 V(dc), 2 in NPT Union Ring, 20 ft (6.1 m) Power code, Chemical transfer pump, corrosion resistance, GPI 118000-1, Lightweight, Molded plastic, P-120H-2UR
Housing Material - Pumps
Polyethylene
Pump Connection OD
1 1/4 in
Max. Outlet Pressure
6 psi
Country of Origin (subject to change)
United States
