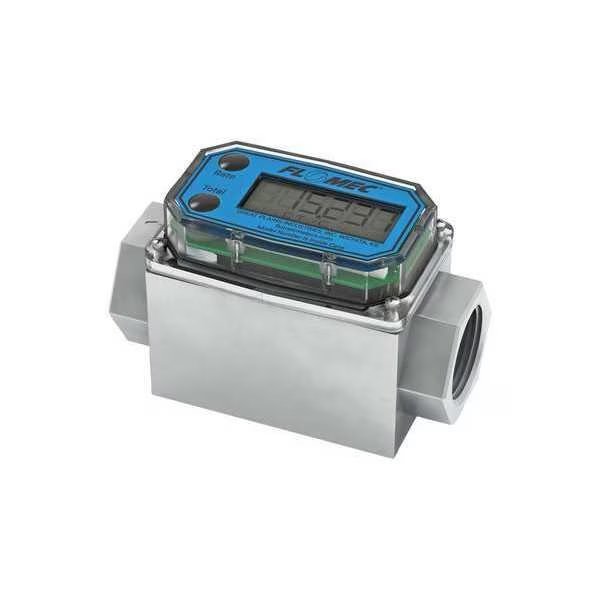

Electronic Flowmeter, 1", FNPT, 3.4" L, Gpi, Mfr#: A1Q9GMA100NA1

Name: Electronic Flowmeter, 1", FNPT, 3.4" L, Gpi, Mfr#: A1Q9GMA100NA1
Brand: Gpi
SKU: GRG300690076
Price: 495 USD
Availability: inStock

Electronic Flowmeter, Product Type Commercial Grade Meter, Flowmeter Type Turbine, Accuracy +/-1.5 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Diesel, Fuels, Petroleum Fluids, Media Temperature – Maximum 250 Degrees F, Media Temperature – Minimum -40 Degrees F, Viscosity – Maximum 100 cps, Voltage – Maximum 1.5V, Housing Material Aluminum, Rotor Material Nylon, Shaft Material Tungsten Carbide

SKU: GRG300690076

Manufacturer: A1Q9GMA100NA1

Brand: Gpi

Category: Flowmeters

$495

🚚 Free shipping will be applied on orders over $50

✓ In stock

Minimum order: 1 piece

Subtotal:

$495.00

Final shipping and tax calculated in checkout

Availability: Ships in 1 day

Item

Electronic Flowmeter

Type

Turbine

Housing Material

Aluminum

For Pipe Size

1 in

Connection Size

1 in

Flow Material

Fuels

Connection Type

FNPT

Max. Pressure

300 psi

Wetted Materials

Aluminum, Ceramic, Nylon, Stainless Steel, Tungsten Carbide

Max. Viscosity

20 cps

Frequency Range (Hz)

36.5 to 608.3

Flow Range

3 to 50 gpm

Fluid Temp. Range

0 Degrees to 129 Degrees F

Display Type

Digital

Output Type

4-20 mA

Sensor Type

Turbine

Length (In.)

4 in

Rotor Type

Nylon Turbine

Display Units

gal

Width (In.)

2 in

Accuracy (%)

+/- 1.5

Height (In.)

2 1/2 in

Flow Range (LPM)

11 to 190

Shaft Material

Tungsten Carbide

Flow Range (GPM)

3 to 50

Flow Range @ GPH

180 to 3000

Standards

ATEX, CE Certified, FM Approved, IECEx

Power Requirement

2-AAA Alkaline Batteries

Voltage - Maximum

1.5V

Operating Pressure - Maximum

300 psi

Product Type

Commercial Grade Meter

Flow Rate - Minimum

3 gpm

Wetted Material

316 Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide

Media Temperature - Minimum

-40 Degrees F

Overall Length

3.4 in

Overall Height

0.9 in

Accuracy

+/-1.5%

Includes Totalizer

Yes

Frequency - Minimum

36 1/2 Hz

Viscosity - Maximum

100 cps

Frequency - Maximum

608 3/10 Hz

Compatible Flow Material

Diesel, Fuels, Petroleum Fluids

Mounting Orientation

Universal

Pulse Rate

999,999 pulses/gal

Overall Width

2.1 in

Flow Rate - Maximum

50 gpm

Flowmeter Type

Turbine

Rotor Material

Nylon

Unit Of Measure

Gallons, Liters

Media Temperature - Maximum

250 Degrees F

Country of Origin (subject to change)

United States

Package Quantity
