| Property | Value |
|---|---|

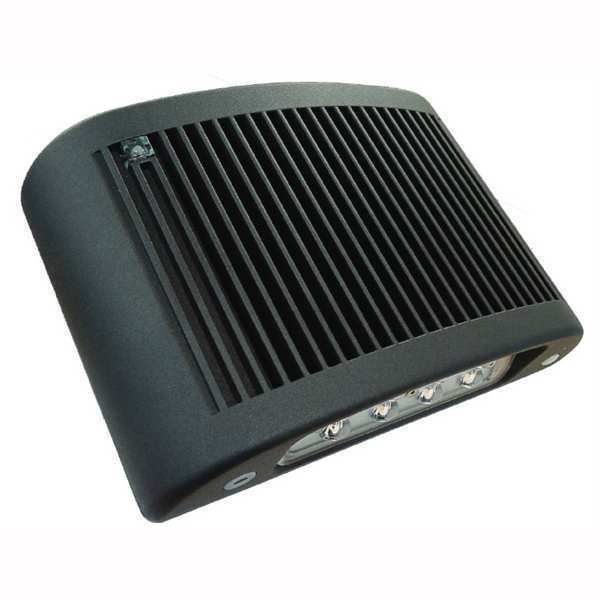

| Item | Wall Pack with Emergency Battery Backup |
| Output Voltage | 7.2V DC |
| Lighting Technology | LED |
| Housing Material | Die Cast Aluminum |
| Length | 9 in |
| Battery Chemistry | Nickel Cadmium |
| Number of Lamp Heads | 1 |
| Width | 9 in |
| Height | 6 1/4 in |
| Color Temperature | 4000K |
| Housing Color | Bronze |
| Features | 24 Hour Recharge After Full Discharge, Automatic Charger, Battery Heater Standard for Cold Locations (-40 Degrees F), Brownout Sensitivity, Dark Sky Compliant, Integral Photocell - Operates Dusk to Dawn in Ac Mode, Integrated Solid State System, Low-Voltage Battery Cutoff, Self Diagnostic Standard, Suitable for Indoor or Outdoor Applications, Test Switch / Ac on Power Indicator Light, UVResistant Poly-Carbonate Lens, Voltage Surge Protection |
| Overall Length | 2 1/2 in |
| Lamp Watts | 18 W |
| Fixture Wattage | 18 W |
| Fixture Width | 9 in |
| Overall Height | 6 1/4 in |
| Housing Finish | Powder Coated |
| Emergency Illumination Time | 90 min |
| Voltage | 120/277V AC |
| Fixture Height | 6 1/4 in |
| Fixture Lens Material | UV Resistant Polycarbonate Lens |
| Warranty | 5 yr |
| Lighting Certification | DesignLights Consortium (DLC) |
| IP Rating | 65 |
| Fixture Housing Material | Aluminum |
| Includes | Battery Backup, Heater |
| Standards | UL 924 |
| Fixture Housing Color | Bronze |
| Overall Width | 9 in |
| Lumens | 600 lm, 1,600 lm |
| Depth | 2 1/2 in |
| Application | Internal Heater for Cold Weather, Outdoor Emergency Wall Pack |
| Compliance Type | Chicago Approved, New York Approved |
| Emergency Wattage | 15 W |
| Lamp Wattage | 15 W |
| Environmental Rating | Outdoor, Wet Location |
| Light Technology | LED |
| Special Features | Brownout Sensitivity, Low-Voltage Battery Cutoff, Voltage Surge Protection |
| Lumens per Watt | 89 lm/W |
| Fixture Sensor Type | Photocell |
| Lens Material | Polycarbonate |
| Min. Operating Temp. | -40 Degrees F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
Emergency Egress Lighting, LED, 120/277V, Big Beam, Mfr#: FCL-EM-DB-HTR
$225.99
Free shipping will be applied on orders over $50
Wall Pack with Emergency Battery Backup, Lumens 600 lm, 1,600 lm, Fixture Wattage 18 W, Voltage 120/277V AC, Fixture Sensor Type Photocell, Light Technology LED, Color Temperature 4000K, Height 6 1/4 in, Width 9 in, Depth 2 1/2 in, Lamp Watts 18 W, Fixture Housing Color Bronze, Fixture Housing Material Aluminum, Fixture Lens Material UV Resistant Polycarbonate Lens, IP Rating 65, Lumens per Watt 89 lm/W, Min. Operating Temp. -40 Degrees F, Standards UL 924, Warranty 5 yr
9999 in stock
Subtotal:
$225.99
