| Property | Value |
|---|---|

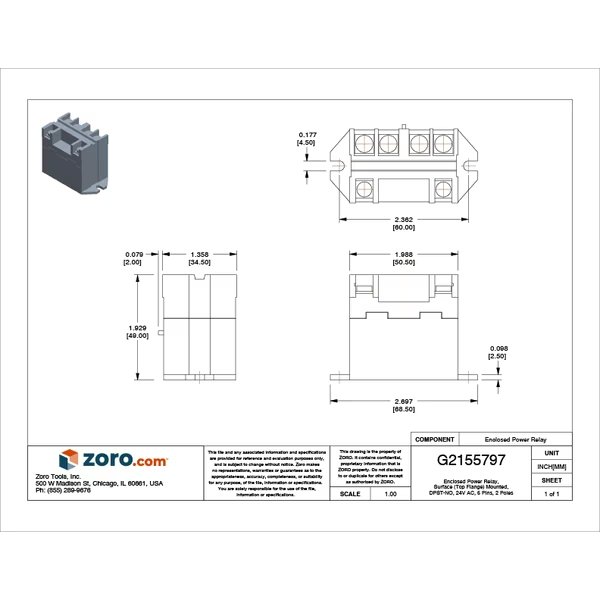

| CAD Available | Yes |
| Item - Relay | Enclosed Power Relay |
| Coil Volts | 24V AC |
| AC Contact Rating - Relay | 25A @ 240V |
| Number of Pins - Relay | 6 |
| Contact Form - Relay | DPST-NO |
| Mounting - Relay | Bottom Flange |
| Power Consumption - Relay | 2.5 VA |
| Contact Material | Silver Tin Indium |
| Electrical Connection - Power Relay | Screw |
| Contact Amp Rating (Inductive) | 25A @ 220VAC |
| Body Height - Relay | 1.988 in |
| Contact Amp Rating (Resistive) | 25A @ 277VAC |
| Standards | RoHS Compliant |
| Body Depth - Relay | 1.358 in |
| Features | Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage |
| Overall Height - Relay | 2.52 in |
| Body Width - Relay | 2.697 in |
| Hz | 50/60 |
| Number of Poles | 2 |
| Electrical Connection | Screw Terminal |
| Item | Enclosed Power Relay |
| Contact Form | DPST-NO |
| Mounting | Flange, Top |
| Dimensions | 1.99 |
| HP @ 120V | 1 |
| HP @ 240V | 3 |
| Hz - Electrical | 50/60 Hz |
| Coil Rating | 2.5VA, 1.9W |
| Pins | 6 |
| Body Height | 1.988 in |
| Response Time | 30 msec |
| Motor Rated | Yes |
| Dielectric Strength | 2,000V AC between Contacts of Different Poles (DPST-NO Type), 2,000V AC between Contacts of Same Pole, 4,000V AC min./5,000V AC Typical between Coil and Contacts |
| Status Indicator | No Indicator |
| Base Shape | Square |
| Series | G7L Series |
| Maximum Operating Temperature | 140 Degrees F |
| Resistance Properties | Flame-Resistant |
| Overall Depth | 1.93 in |
| Mechanical Operating Durability | 1,000,000 |
| Mounting Hole Diameter | 0.18 in |
| Current Rating | 30 A |
| Body Width | 2.697 in |
| Coil Resistance | 303 ohm |
| Horsepower @ 240V AC | 3 hp |
| Number of Pins | 6 |
| Coil Voltage | 24V AC |
| Power Consumption | 1.7 VA, 2.5 VA |
| Frequency | 60 Hz |
| Operating Current | 25 A at 220V AC (Resistive Load/Inductive Load) |
| Flat Pin Width | 0.25 in |
| For Use With | Inrush Fluid Pump Control |
| Contact Rating (DC) | 0.1 A @ 24V |
| Insulation Resistance | 1,000 megaohm |
| Input Voltage | 24V AC |
| Weight | 4.23 oz |
| Sealing | Semi-Sealed |
| Maximum Switching Voltage | 250V AC |
| Minimum Operating Temperature | -13 Degrees F |
| Base Type | Magnetic Blowout |
| Mounting Style | Top Flange |
| Push-To-Test Method | Push Button |
| Electrical Operating Durability | 100,000 |
| Contact Rating (AC) | 30 A @ 240V |
| Body Depth | 1.358 in |
| Minimum Switching Current | 100 mA |
| Horsepower @ 120V AC | 1 1/2 hp |
| Country of Origin (subject to change) | Indonesia |
| Package Quantity | 1 |
Enclosed Power Relay, Surface (Top Flange) Mounted, DPST-NO, 24V AC, 6 Pins, 2 Poles, Omron, Mfr#: G7L-2A-BUBJ-CB-AC24
$21.35
Free shipping will be applied on orders over $50
Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection Screw Terminal, Flat Pin Width 0.25 in, Number of Pins 6, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 240V, Contact Rating (DC) 0.1 A @ 24V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style Top Flange, Push-To-Test Method Push Button, Body Depth 1.93 in, Body Height 2.7 in, Body Width 1.44 in
9999 in stock
