| Property | Value |
|---|---|
| Item - Relay | Prewired Relay |
| Application - Prewired Relay | Pilot Duty |
| Coil Volts | 10 to 30V AC/DC, 208 to 277V AC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 10A @ 28V |
| Contact Form - Relay | SPDT |
| Mounting - Relay | 1/2 in Nipple, Surface |
| Power Consumption - Relay | 0.4W, 8.1 to 10.8VA |
| Indicator Type | LED |
| Dimensions | 1.7 |
| NEMA Enclosure Type | 1 |
| Response Time | 20 msec |
| Body Height - Relay | 1.7 in |
| Nipple Size | 0.50 in NPT |
| Contact Form | SPDT |
| Body Width - Relay | 2.8 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Application | Pilot |
| Lead Length | 16 in |
| HP @ 240V | 1/6 hp, 1/3 hp |
| HP @ 120V | 1/6 hp, 1/3 hp |
| Contact Material | Gold Flashed Silver Cadmium Oxide |
| Overall Height - Relay | 1.7 in |
| Standards | CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed |
| Features | 1/2 in NPT Nipple, LED Indicator |
| Body Depth - Relay | 1.5 in |
| Item | Enclosed Pre-Wired Relay |
| Contact Amp Rating (Resistive) | 10A @ 277VAC, 10A @ 28VDC |
| Hz | 50/60 |
| Body Depth | 1.5 in |
| Maximum Operating Temperature | 140 Degrees F |
| Body Width | 1.7 in |
| NEMA Enclosure Rating | 1 |
| Current Rating | 10 A |
| Coil Voltage | 277V AC |
| Mechanical Operating Durability | 10,000,000 |
| Minimum Operating Temperature | -30 Degrees F |
| Frequency | 50/60 Hz |
| Horsepower @ 240V AC | 1/6 hp |
| Contact Rating (AC) | 10 A @ 277V |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Sealing | Enclosed |
| Operating Current | 10 A at 10 to 30V AC/DC, 10 A at 208 to 277V AC |
| Overall Depth | 1.5 in |
| Contact Rating (DC) | 10 A @ 28V |
| Input Voltage | 10 to 30V AC, 208 to 277V AC/DC |
| Body Height | 2.8 in |
| Status Indicator | LED Indicator |
| Horsepower @ 120V AC | 1/6 hp |
| Mounting Style | Surface |
| No. of Relays u0026 Contact Type | One (1) SPDT Continuous Duty Coil |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Override Switch | No |
| Operating Temperature | -30 to 140ΓΒ° F |
| Gold Flash | Yes |
| Contact Ratings | 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C) |
| Relay Status | LED On - Activated |
| Operate Time | 20ms |
| Humidity Range | 5 to 95% (noncondensing) |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Wires | 16 |

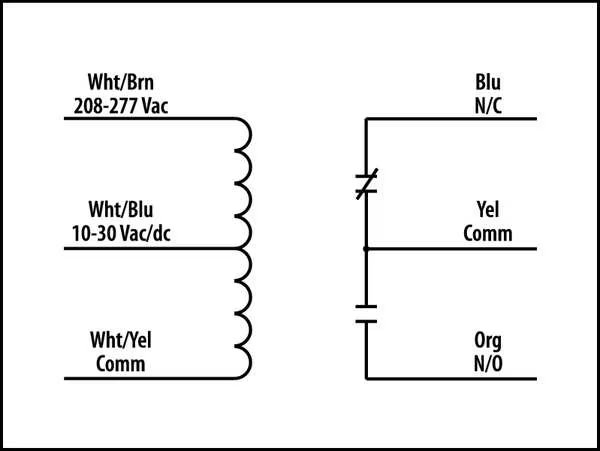

| Coil Voltage Input | 10-30 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIBH1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
| Coil Current | 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 39 mA @ 208-277 Vac (RIBH1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc |
| Approvals | UL Listed, C-UL, CE (All models), UL916 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Enclosed Pre-Wired Relay, 10A@277VAC, SPDT, Lead Length: 16 in, Functional Devices-Rib, Mfr#: RIBH1C
$23.79
Free shipping will be applied on orders over $50
Enclosed Pre-Wired Relay, Coil Voltage 277V AC, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC, 208 to 277V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 2.8 in, Body Width 1.7 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp
9999 in stock
