| Property | Value |
|---|---|
| Item - Relay | Prewired Relay |
| Application - Prewired Relay | Pilot Duty |
| Coil Volts | 10 to 30V AC/DC, 120V AC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 10A @ 28V |
| Contact Form - Relay | SPDT |
| Mounting - Relay | 1/2 in Nipple, Surface |
| Power Consumption - Relay | 0.6W, 3.4VA |
| Response Time | 20 msec |
| Application | Pilot |
| Item | Enclosed Pre-Wired Relay |
| HP @ 120V | 1/6 hp, 1/3 hp |
| Body Width - Relay | 2.8 in |
| Standards | CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed |
| Body Depth - Relay | 1.5 in |
| Contact Form | SPDT |
| Nipple Size | 0.50 in NPT |
| Overall Height - Relay | 1.7 in |
| Contact Amp Rating (Resistive) | 10A @ 277VAC, 10A @ 28VDC |
| Hz - Electrical | 50 Hz, 60 Hz |
| Contact Material | Gold Flashed Silver Cadmium Oxide |
| Indicator Type | LED |
| NEMA Enclosure Type | 1 |
| Features | 1/2 in NPT Nipple, LED Indicator |
| HP @ 240V | 1/6 hp, 1/3 hp |
| Lead Length | 16 in |
| Dimensions | 1.7 |
| Body Height - Relay | 1.7 in |
| Hz | 50/60 |
| Current Rating | 10 A |
| Contact Rating (DC) | 10 A @ 28V |
| Contact Rating (AC) | 10 A @ 277V |
| Operating Current | 10 A at 10 to 30V AC/DC, 10 A at 120V AC |
| Coil Voltage | 120V AC |
| Body Height | 1.5 in |
| Minimum Operating Temperature | -30 Degrees F |
| NEMA Enclosure Rating | 1 |
| Frequency | 50/60 Hz |
| Horsepower @ 120V AC | 1/6 hp |
| Power Consumption | 0.6 W, 3.4 VA |
| Mounting Style | Surface |
| Mechanical Operating Durability | 10,000,000 |
| Status Indicator | LED Indicator |
| Overall Depth | 1.5 in |
| Sealing | Enclosed |
| Body Depth | 1.5 in |
| Body Width | 2.8 in |
| Input Voltage | 10 to 30V AC, 120V AC/DC |
| Horsepower @ 240V AC | 1/6 hp |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Maximum Operating Temperature | 140 Degrees F |
| No. of Relays u0026 Contact Type | One (1) SPDT Continuous Duty Coil |
| Operating Temperature | -30 to 140ΓΒ° F |
| Wires | 16 |
| Coil Current | 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc |
| Override Switch | No |
| Operate Time | 20ms |
| Gold Flash | Yes |
| Approvals | UL Listed, C-UL, CE (All models), UL916 |

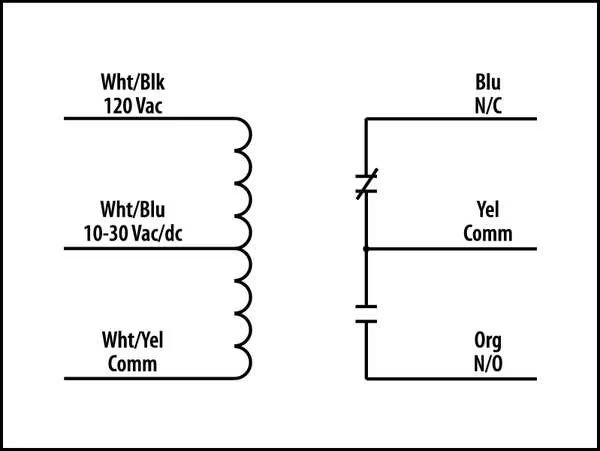

| Coil Voltage Input | 10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Relay Status | LED On - Activated |
| Humidity Range | 5 to 95% (noncondensing) |
| Contact Ratings | 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C) |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Enclosed Pre-Wired Relay, 10A@277VAC, SPDT, Functional Devices-Rib, Mfr#: RIBU1C
$16.69
Free shipping will be applied on orders over $50
Enclosed Pre-Wired Relay, Coil Voltage 120V AC, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC, 120V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 2.8 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp
9999 in stock
Subtotal:
$16.69
