| Property | Value |
|---|---|
| Handle Material | Drop Forged Steel |
| Throat Depth (In.) | 5 1/2 in |
| Width | 2 |
| Application | Welding and Fabrication |
| Width (In.) | 2 in |
| Item | Bar Clamp |
| Nominal Clamping Pressure | 2,660 |
| Nominal Rail Size (In.) | 1-3/16 x 19/32 |
| Max. Jaw Opening (In.) | 20 in |
| Spindle Dia. (In.) | 3/4 |
| Load Capacity (Lb.) | 2,660 lb |
| Swivel Type | Replaceable |
| Opening (In.) | 20 in |
| Type | Heavy Duty F-Clamp |
| Pad Type | Replaceable, V-Groove |
| Function | Clamp |
| Duty Rating | Heavy Duty |
| Bar Type | Drop Forged |
| Throat Depth1 | 5 1/2 in |
| Clamping Force1 | 2,660 lb |
| Sliding Mechanism | Bar Slide |
| Bar Thickness | 5/8 in |
| Shape | F |
| Spindle Finish1 | Black Oxide |
| Max Throat Depth | Greater than 5 |
| Clamping Capacity1 | 20 in |
| Handle Style | Sliding T |
| Jaw Pad Type | Swivel |
| Spindle Diameter1 | 3/4 in |
| Max Jaw Opening | 13 - 36 |
| Overall Width3 | 2 in |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |

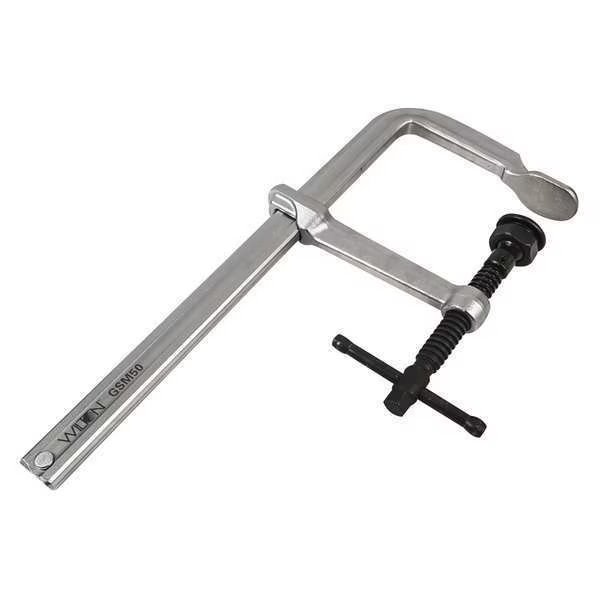

20 in Bar Clamp, Drop Forged Steel Handle and 5 1/2 in Throat Depth, Wilton, Mfr#: GSM50
$111.99
Free shipping will be applied on orders over $50
Bar Clamp, Bar Type Drop Forged, Handle Style Sliding T, Clamping Capacity 20 in, Clamping Force 2,660 lb, Throat Depth 5 1/2 in, Jaw Pad Type Swivel, Sliding Mechanism Bar Slide, Bar Thickness 5/8 in, Spindle Finish Black Oxide, Application Welding and Fabrication, Function Clamp, Handle Material Drop Forged Steel, Overall Width 2 in, Spindle Diameter 3/4 in
9999 in stock
