Thickness Range (In.)
0.001 to 0.031
Material
301 Stainless Steel
Thickness (mm)
0.025mm 0.038mm 0.051mm 0.076mm 0.102mm 0.127mm 0.152mm 0.178mm 0.203mm 0.229mm 0.254mm 0.305mm 0.381mm 0.508mm 0.635mm 0.787mm
Includes

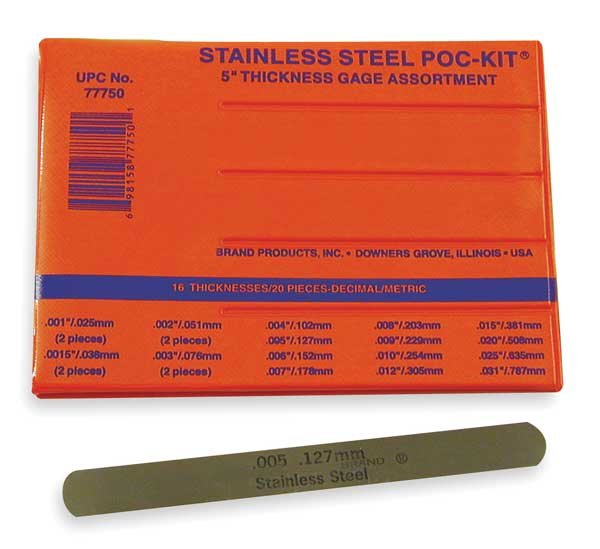

2 of Each Thickness: 0.001 in /0.025mm, 0.0015 in /0.038mm, 0.002 in /0.051mm, 0.003 in /0.076mm Thick, 1 of Each 0.004 in /0.102mm, 0.005 in /0.127mm, 0.006 in /0.152mm, 0.007 in /0.178mm, 0.008 in /0.203mm, 0.009 in /0.229mm, 0.010 in /0.254mm, 0.012 in /0.305mm, 0.015 in /0.381mm, 0.020 in /0.508mm, 0.025 in /0.635mm, and 0.031 in /0.787mm, Vinyl Case
Thickness (In.)
0.001 in 0.0015 in 0.002 in 0.003 in 0.004 in 0.005 in 0.006 in 0.007 in 0.008 in 0.009 in 0.010 in 0.012 in 0.015 in 0.020 in 0.025 in 0.031 in
Markings
Inch with Metric Equivalent
Application
Used in Manufacturing and Maintenance Operations, Wherever Setting Close Spacing or Checking Extremely Tight Tolerances is Required
Minimum Thickness - mm
0.025 mm
Minimum Thickness - Inch
0.001 in
Thickness Range
0.001 in to 0.031 in
Blade Style
Straight Blade
Maximum Thickness - mm
0.787 mm
Number of Feeler Blades
20
Maximum Thickness - Inch
0.031 in
Included Blades
0.0015 in/0.038 mm, 0.002 in/0.051 mm, 0.003 in/0.076 mm Thick, 0.005 in/0.127 mm, 0.006 in/0.152 mm, 0.007 in/0.178 mm, 0.008 in/0.203 mm, 0.009 in/0.229 mm, 0.01 in/0.254 mm, 0.012 in/0.305 mm, 0.015 in/0.381 mm, 0.02 in/0.508 mm, 0.025 in/0.635 mm, 1 of Each 0.004 in/0.102 mm, 2 of Each Thickness: 0.001 in/0.025 mm, and 0.031 in/0.787 mm
Dimension Type
Inch/Metric
Blade Material
Stainless Steel
Tolerance
0.005 in-0.010 in +/-10%; 0.012 in-0.015 in +/-0.0015 in; 0.020 in-0.031 in +/-0.002 in
Included Certification
Certificate of Conformance
Country of Origin (subject to change)
United States
