| Item | Female Elbow |
| Sub-Category | Elbows |
| Temp. Range | -40 Degrees to 200 Degrees F |
| Standards | DOT FMVSS 571.106, SAE J1131 |
| Pipe Size | 1/8 in |
| Material | Brass |
| Type | Female |
| Thread Size | 1/8-27 |
| Pressure (PSI) | 150 |
| Connection | Quick Connect |
| For Use With | Push Connect/Air Brake |
| Gasket Material | Ethylene Propylene Rubber |
| Tube Size | 1/4 in |
| Application | Air |
| Color | Gold |
| Fitting Shape | Elbow |
| Fitting Side A Connection Type | Push-to-Connect |
| Connection Type | Push-to-Connect x NPTF |
| Fitting Side A Tube Outer Diameter | 1/4 in |
| Fitting Body Material | Brass |
| Maximum Operating Pressure | 150 psi |
| Release Ring Material | Ethylene Propylene Rubber |
| System of Measurement | Imperial |
| Fitting Side B Pipe Size | 1/8 in |
| Fitting Thread Size | 1/8-27 |
| Specific Fitting Shape | 90 Degrees Elbow Adapter |
| End Connection Type | Push-to-Connect, Threaded |
| Minimum Operating Temperature | 40 Degrees F |
| Fitting Pipe Size | 1/8 in |
| Includes Pre-Applied Thread Sealant | Yes |
| Resistance Properties | Vibration-Resistant |
| Maximum Operating Temperature | 200 Degrees F |
| For Tube OD | 1/4 in |
| Fitting Side B Connection Type | NPTF |
| Fitting Material | Brass |
| For Tube Outside Diameter | 1/4 in |
| Overall Length | 1 3/32 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

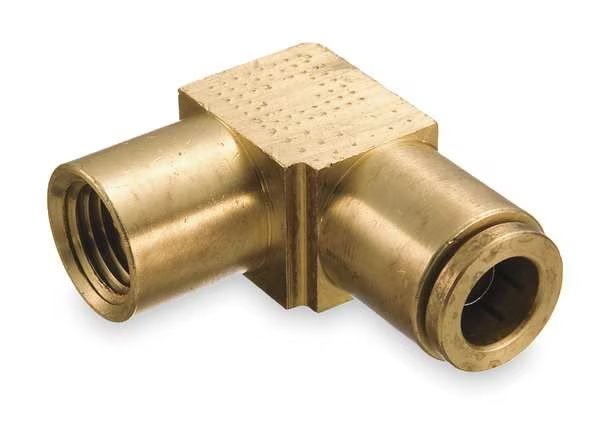

Female Elbow, 1/8-27, 1/4 In Tube Sz, WEATHERHEAD, Mfr# 1870X4
$8.97
Free shipping will be applied on orders over $50
Female Elbow, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type NPTF, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Material Brass, Fitting Thread Size 1/8-27, Color Gold, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 3/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Standards DOT FMVSS 571.106, SAE J1131
9999 in stock
Must order in multiples of 1
