| Bearing Insert Type | Radial Ball |
| Bore Dia. | 1 in |
| Shaft Locking Type | Set Screws |
| Bearing Housing Material Type | Stainless Steel |
| Bearing Insert Material | Stainless Steel |
| Bolt Hole Center-to-Center | 3 57/64 in |
| Series | SFL-FG1 |
| Bolt Size | 1/2 in |
| Overall Height | 2 21/32 in |
| Standards | NSF H1 Registered |
| Bearing Lubrication | FDA/USDA-H1 Solid Grease |
| Temp. Range | 14 Degrees to 212 Degrees F |
| Overall Width | 1 13/32 in |
| Overall Length | 4 29/32 in |
| Item | 2 Bolt Flange Bearing |
| Finish | Unfinished |
| Dynamic Load Capacity | 2,470 lbf |
| Includes | (2) Set Screws |
| Static Load Capacity | 1,800 lb |
| Housing Material | Stainless Steel |
| Maximum Temperature | 212 Degrees F |
| Maximum Speed | 5,100 RPM |
| Mounting Bolt Size | 5/8 in |
| Back Side to Center Width | 0.63 in |
| Housing Material Finish | Unfinished |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Minimum Temperature | 14 Degrees F |
| Seal Type | Contact |
| Housing Material Grade | 440C |
| Flange Thickness | 17/32 in |
| Static Radial Load Capacity | 1,800 lbf |
| Application | Agriculture, Automotive, Cosmetic/Pharmaceutical, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical |
| Bore Diameter | 1 in |
| Housing Type | Rhombus |
| Mount Hole Center-to-Center Height | 3 57/64 in |
| Lubrication Openings | One Zirc Fitting |
| Number of Mount Holes | 2 |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Bore Type | Cylindrical |
| Included Bearing | SUC205-16 |
| Closure | Double Sealed |
| Mount Hole Center-to-Center Length | 3 57/64 in |
| Bearing Material Grade | 440C |
| System of Measurement | Inch |
| Resistance Properties | Corrosion Resistant |
| Mount Hole Size | 0.63 in |
| Included Bearing Cap | Closed Cap |
| Brand & Part Number | NTN SUCFL205-16CCFG1 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |

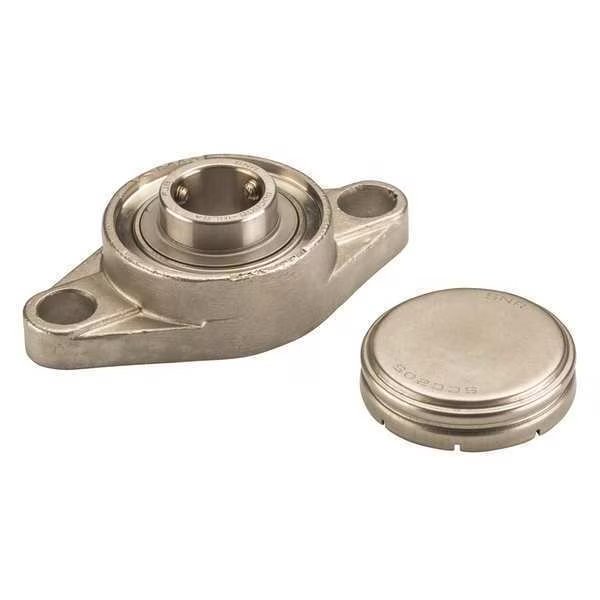

Flange Bearing, 2-Bolt, 1" Bore, SS/SS, NTN, Mfr# SUCFL205-16CCFG1
$268.68
Free shipping will be applied on orders over $50
2 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 3 57/64 in, Number of Mount Holes 2
9999 in stock
Must order in multiples of 1
