| Property | Value |
|---|---|

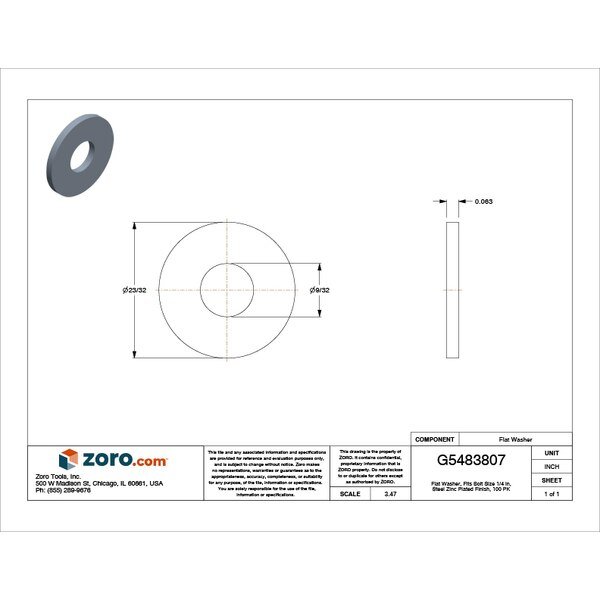

| CAD Available | Yes |
| Item | Flat Washer |
| Material | Steel |
| Finish | Zinc Plated |
| For Screw Size | 1/4 |
| Outside Diameter | 23/32 in |
| Minimum Thickness | 0.063 in |
| Maximum Thickness | 0.063 in |
| Standards | ASME B18.22.1 |
| System of Measurement | Inch |
| Inside Diameter | 0.281 in |
| Package Quantity | 100 |
| Thickness Tolerance | 0.051-0.08 |
| Rockwell Hardness | 140HV |
| Type | Standard |
| Color | Silver |
| Dimensional Standards | ASME B18.22.1 |
| Pack Size | Small Pack |
| Inside Diameter Tolerance | 0.276-0.296 |
| Outside Diameter Tolerance | 0.714-0.734 |
| Material Quality Standards | Not Rated |
| Material Grade/Class | Grade 2 |
| Manufacturer Location | Globally Sourced |
| REACH Compliant | Yes |
| Removable | Yes |
| Minimum Temperature | -58 Degrees C |
| Made in North America | No |
| Maximum Temperature | 350 Degrees C |
| RoHS Compliant | Yes |
| Resistance Properties | Not Applicable |
| Bolt Compatibility | Grade 2 |
| Country of Origin (subject to change) | Multiple |
Flat Washer, For Screw Size 1/4" , Steel Zinc Plated Finish, 100 PK, EnjoyTool Select, Mfr#: U38400.025.0002
$4.15
Free shipping will be applied on orders over $50
Flat Washer, Flat Washer Type Standard, Dimensional Standards ASME B18.22.1, Material Steel, Material Grade/Class Grade 2, Finish Zinc Plated, For Screw Size 1/4 in, Inside Diameter 0.281 in, Outside Diameter 23/32 in, Maximum Thickness 0.063 in, System of Measurement Inch, Minimum Thickness 0.063 in, Color Silver, Inside Diameter Tolerance 0.276-0.296, Made in North America No, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated, Maximum Temperature 350 Degrees C
9999 in stock
Must order in multiples of 3
