Center Line Pipe Center Size
5 1/2 in
Electrical Connections
7/8
Valve Design
2-Way/2-Position
Item

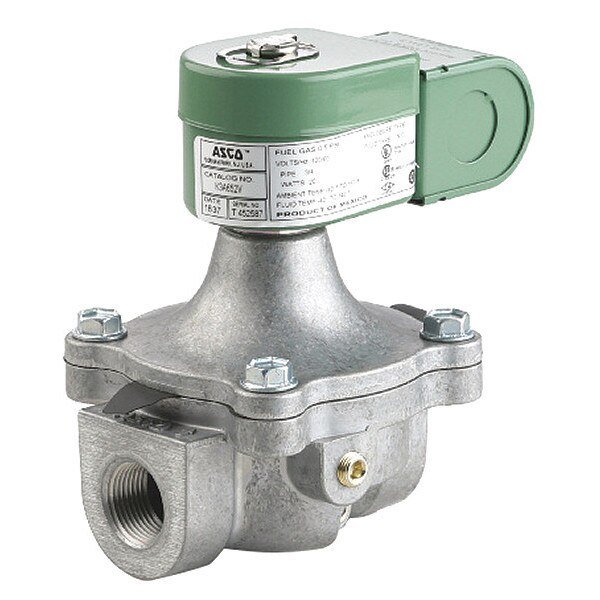

Fuel Gas Solenoid Valve
Valve Configuration
Normally Closed
Body Material - Valves
Aluminum
Ambient Temp. Range
-40 Degrees to 160 Degrees F
Max. Fluid Temp.
140 Degrees F
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Application
For Control of Commercial and Industrial Gas Burners
Min. Operating Pressure Differential
0 psi
Max. Operating Pressure Differential Air/Inert Gas
5 psi
Max. Operating Pressure Differential
5 psi
Coil Enclosure
General Purpose Junction Box
Valve Ways and Positions
2-Way/2-Position
Operating Pressure Differential Steam - Maximum
Not Rated
Operating Pressure Differential Cryogenic Fluid - Minimum
Not Applicable
Outlet Connection Type
NPTF
Operating Pressure Differential Cryogenic Fluid - Maximum
Not Applicable
Operating Pressure Differential Steam - Minimum
Not Applicable
Operating Pressure Differential Fuel Oil - Minimum
Not Applicable
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Air/Inert Gas - Maximum
5 psi
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Fuel Gas - Maximum
Not Applicable
Operating Pressure Differential Fuel Gas - Minimum
Not Applicable
Fluid Temperature - Maximum
140 Degrees F
Operating Pressure Differential Natural Gas - Minimum
Not Applicable
Nominal Pipe Size
1 1/4 in
Operating Pressure Differential Water - Minimum
Not Applicable
Ambient Temperature - Maximum
160 Degrees F
Ambient Temperature - Minimum
-40 Degrees F
Operating Pressure Differential Air/Inert Gas - Minimum
Not Applicable
Valve Starting Configuration
Normally Closed
Operating Pressure Differential - Maximum
5 psi
Operating Pressure Differential Fuel Oil - Maximum
Not Applicable
Coefficient of Volume (Cv)
32
Operating Pressure Differential Liquid CO2 - Maximum
Not Applicable
Gas Capacity
1,730,000 BtuH
Valve Positions
2-Position
Operating Pressure Differential Liquid CO2 - Minimum
Not Applicable
Operating Pressure Differential - Minimum
0 psi
Operating Pressure Differential Light Oil - Minimum
Not Applicable
Mounting Orientation
Horizontal
Operating Pressure Differential Hot Water - Minimum
Not Applicable
Operating Pressure Differential Hot Water - Maximum
Not Rated
Inlet Connection Type
NPTF
Operating Pressure Differential Natural Gas - Maximum
Not Applicable
Operating Pressure Differential Water - Maximum
Not Rated
Country of Origin (subject to change)
Mexico
