| Property | Value |
|---|---|
| Item | Foot Switch |
| Contact Form | SPDT |
| NEMA Rating | 1 |
| Voltage Rating | 125/250V AC |
| Color | Black |
| HP | 1 |
| Material | Cast Iron |
| Width | 3 1/2 in |
| Depth | 1 1/2 in |
| Length | 4 1/2 in |
| IP Rating | IP20 |
| Current Rating | 20 |
| Action | Momentary |
| Footnotes | 10 |
| Cord Length | Not Applicable |
| Features | (2) Mounting Holes |
| Standards | CE, CSA, RoHS, UL Listed |
| Overall Width | 3.5 in |
| Overall Height | 2.13 in |
| Length (Straight Wireway) | 4 1/2 in |
| Products By Industry | Fabricated Metals |
| Switch Type | Electrical |
| Cable Entries | Adjustable strain relief clamp |
| ENCLOSURE | NEMA Type 1 Γ’β¬Β’ UL ENCLOSURE Type 1 Γ’β¬Β’ CSA ENCLOSURE Type 1 Γ’β¬Β’ EN 60529 Degree Of Protection Γ’β¬Β’ IP20 |
| MATERIALS | Proven Reliability All maintained models offer |
| PURPOSE | Medium Duty General Purpose Design |
| Circuitries | SPDT (Form |
| Switch Connections | Screw terminal |
| Housing Materials | Cast Iron |
| Actions | Single Stage Momentary |
| Housing Colors | Black |
| Electrical Ratings | 20A, 125-250 VAC, 1 HP 125-250 VAC |
| FEATURES u0026 BENEFITS | Adhesive Applicator Armored Vehicle Assembly-Thermoplastics Braider Braking System Building Machine Button Machine Camera Check-out Counters Combustion Controller Communication Systems Computers Converting Systems Conveyor Belt Lacing Machine Cordset Manufacturing Machine Cradle Crimping Machine Cut to Length System Cutter Deburring/Chamfering Machines Decorator Degreasers Depanelizer Desoldering Station Dispenser Dispensing-Curing System Ditch Digger Emergency Vehicles Engraving Machines Epilator Eyeletting Machine Farm Equipment Feeding u0026 Inserting Systems Filler Finisher Finishing Machine Flexible Shaft Machines Flocking Machine Flycutter Folding u0026 Creasing Machine Grinder Grommeting Machine Hand Tool Handpiece Heat Treating Inspecting u0026 Measuring System Inspection Workstation Intercom Systems Ion Air Gun Lathes Lift Lights Measuring Machine Medical Equipment Microscopes Packaging System Paper Tipper Peeling Machine Photographic Equipment Piercing Machine Planishing Machines Platforms Positioner/Turntable Presser Printing Machines Pump Reel Take-up System Rewind System Riveter Rolling Machine Router Sand Blasters Saw Sealer Sewing Machine Shoe Machine Slitter Snow Removal Machine Solder Sorting Machine Splicers Stapler Sterilizer Stitcher Strapping Machine Stripper Submarines Surgical Equipment Tables Taping Machine Telephone Equipment Termination Machine Tester Tug Turntable TV Studio Equipment Vise Waxer Welders Winding Equipment Wreath Making Machine X-Ray Machine |
| Hazardous Location Specification | Not Rated |
| DC Contact Rating | Not Applicable |
| Termination Connection Type | Screw Terminal |
| Number of Pedals | 1 |
| Series | Clipper |
| Includes Foot Guard | No Guard Included |
| Horsepower | 1 HP @ 125 to 250V AC |
| AC Contact Rating | 20 A @ 125 to 250 V |
| Overall Depth | 5.61 in |
| Power Source | Electrically Corded |
| NEMA Enclosure Rating | 1 |
| Includes Potentiometer | No Potentiometer Included |
| Resistance Properties | Corrosion Resistant, Watertight |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

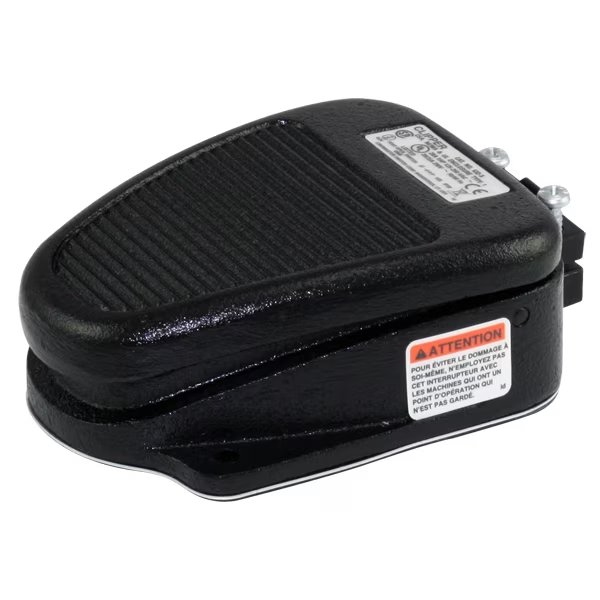

General Purpose Foot Switch, SPDT, Momentary, 125/250V AC, 1, 20, Cast Iron, Black, Linemaster, Mfr#: 632-S
$65.59
Free shipping will be applied on orders over $50
Foot Switch, SPDT Contact Form, Voltage Rating 125/250V AC, NEMA Rating 1, Current Rating 20, Material Cast Iron, Color Black, Momentary Action, Length 4 1/2 in, Width 3 1/2 in, Depth 1 1/2 in, HP 1, Cord Length Not Applicable, IP Rating IP20, Features (2) Mounting Holes, Standards CE, CSA, RoHS, UL Listed
9999 in stock
Subtotal:
$65.59
