Includes
Test and Calibration Equipment Certificate of Calibration Conformance
Voltage
12 to 30V DC, 18 to 30V AC
For Use With
HVAC Control System
Connection
Screw Terminal Blocks
Building Type
Commercial, Hospitality
Occupancy Control Sensor
No
Application
Humidity Monitoring
Dehumidification Capability
No
Item
Humidity and Temperature Sensor
Features
User-Selectable Output Voltage Range
Standards
CCN XAPX, CE Certified, IEC 60730-2-13, UL 2043, UL Listed, UL 60730-1
Dimensions
3.28 in. x 3.25 in. x 8.27 in.
Agency Compliance
CCN XAPX, E27734, CE, IEC 60730-2-13 Plenum Rated UL 2043, UL 60730-1, UL Listed
Maximum Sensing Temperature
131 Degrees F
Temperature Accuracy
+/-0.34 Degrees F
Electrical Connection Type
Screw Terminals
Power Required
12 to 30V DC, 18 to 30V AC
For Use With Building Automation Systems
Building Automation System Compatible
Relative Humidity/Dew Point Output
0 to 10V DC
Relative Humidity Accuracy
+/-2% of Full Scale
Product Type

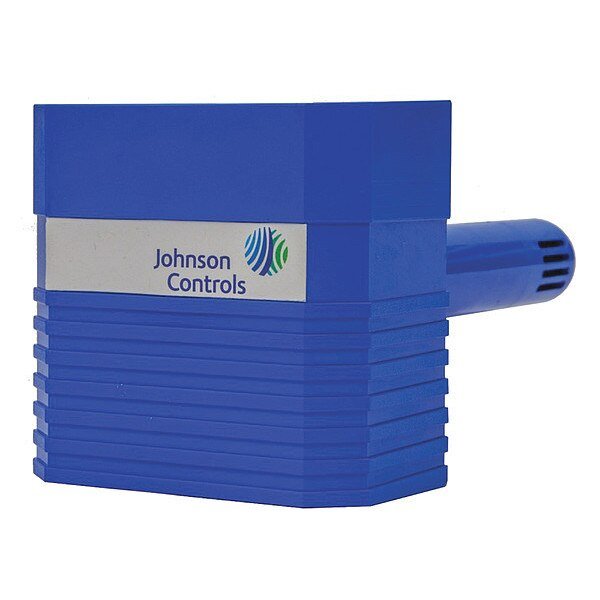

Duct Temperature and Humidity Sensor
Includes Power Supply
Power Supply Included
NIST Traceable Certificate
NIST Traceable Certified
Manufacturers Warranty Length
3 yr
Minimum Operating Temperature
32 Degrees F
Minimum Sensing Temperature
32 Degrees F
Sensing Element Type
Nickel
Relative Humidity Range
20 to 80%
Maximum Operating Temperature
140 Degrees F
Country of Origin (subject to change)
Mexico
