Full Load Amps-Inductive | 16 A |
Item | IEC Magnetic Contactor |
Full Load Amps-Resistive | 22 A |
Action | Non-Reversing |
Number of Poles | 3 |
Coil Volts | 24 V DC |
Reversing | No |
HP @ 1 Phase - 120V | 1 hp |
HP @ 1 Phase - 230V | 2 |
Height | 1.77 in |
HP @ 1 Phase - 240V | 2 hp |
HP @ 3 Phase - 208V | 3 hp |
Width | 1.77 in |
HP @ 3 Phase - 575V | 10 hp |
Depth | 2.87 in |
HP @ 3 Phase - 240V | 5 hp |
Enclosure NEMA Rating | No Enclosure |
HP @ 3 Phase - 480V | 10 hp |
Aux. Contact Configuration | 1NO |
Standards | REACH Art 33, WEEE (2012/19/EU) |
Frame / Series / Class / Code | S00 |
Auxiliary Contact Form | 1NO |
NEMA Size | Not Applicable |
Series | SIRIUS 3RT20 |
Max. Operating Watts | 8 kW (at 400V, AC-3), 13 kW (at 400V, AC-1) |
Watts Loss | 1W (Current Dependent), 4W (Current Independent) |
Electrical Connection | Screws |
IP Rating | IP20 |
Reversing Capability | Non-Reversing |
Mounting Postion | Vertical |
Maximum Operating Temperature | 140 Degrees F |
Number of Auxillary Contacts | 1 |
Mounting Style | DIN Rail, Surface |
Includes Auxiliary Contacts | Yes |
Full Load Current - Inductive | 16 A |
Full Load Current - Resistive | 22 A |
Horsepower @ Three Phase - 208V AC | 3 hp |
Contactor Style | IEC |
Response Time | 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay) |
NEMA Enclosure Rating | No Enclosure |
Phase | Three |
Embedded Surge Suppressor | No |
Maximum Voltage Rating | 690V AC |
Overall Width | 2.4 in |
Horsepower @ Single Phase - 240V AC | 2 hp |
Overall Height | 1.95 in |
Frame Size | S00 |
Mounting Hole Distance - Width | 1.38 in |
Number of Normally Open Main Contacts | 3 |
Horsepower @ Three Phase - 480V AC | 10 hp |
Minimum Operating Temperature | -13 Degrees F |
Coil Voltage | 24V DC |
Horsepower @ Three Phase - 240V AC | 5 hp |
NEMA Enclosure Material | Not Applicable |
Mechanical Operating Durability | 30,000,000 |
Mounting Hole Distance - Height | 1.97 in |
Horsepower @ Single Phase - 120V AC | 1 hp |
Horsepower @ Three Phase - 600V AC | 10 hp |
Overall Depth | 3.3 in |
Mounting Hole Diameter | 0.2 in |
Terminal Connection Type | Screw Terminals |
Country of Origin (subject to change) | Germany |
Package Quantity | 1 |

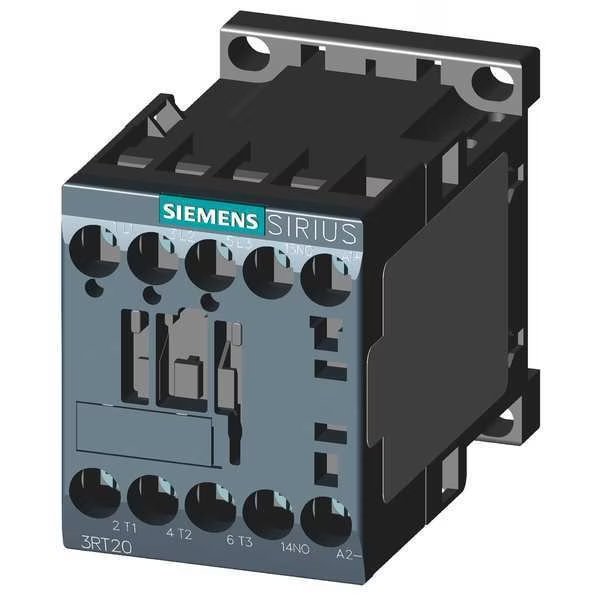

IEC Magnetic Contactor, 3 Poles, 24 V DC, 16 A, Reversing: No, SIEMENS, Mfr# 3RT20181BB41
$151.32
Free shipping will be applied on orders over $50
IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 16 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 1.95 in, Overall Width 2.4 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
9999 in stock
Must order in multiples of 1
Subtotal:
$151.32
