Full Load Amps-Inductive
7 A
Item

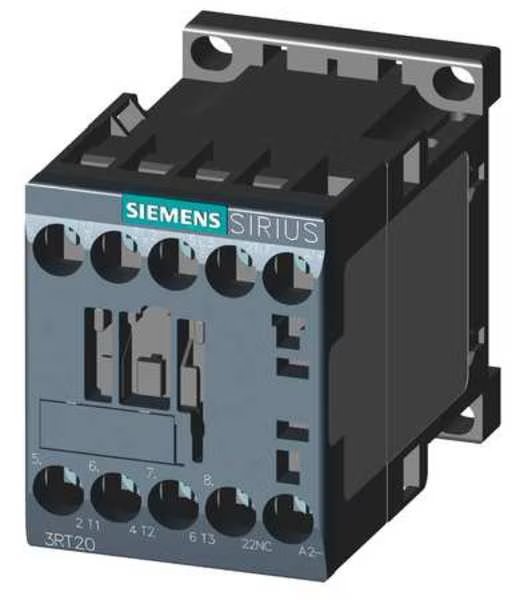

IEC Magnetic Contactor
Full Load Amps-Resistive
18 A
HP @ 1 Phase - 120V
1/4 hp
HP @ 1 Phase - 240V
3/4 hp
HP @ 3 Phase - 208V
1 1/2 hp
Enclosure NEMA Rating
No Enclosure
Aux. Contact Configuration
1NC
Standards
REACH Art 33, WEEE (2012/19/EU)
Auxiliary Contact Form
1NC
Frame / Series / Class / Code
S00
Electrical Connection
Screws
Watts Loss
0.2W (Current Dependent); 4W (Current Independent)
Max. Operating Watts
3 kW (at 400V, AC-4), 3 kW (at 400V, AC-3), 11 kW (at 400V, AC-1)
Horsepower @ Three Phase - 208V AC
1 1/2 hp
Number of Normally Open Main Contacts
3
Number of Auxillary Contacts
1
Horsepower @ Single Phase - 120V AC
1/4 hp
Horsepower @ Three Phase - 600V AC
5 hp
Horsepower @ Single Phase - 240V AC
3/4 hp
Maximum Voltage Rating
690V AC
NEMA Enclosure Rating
No Enclosure
Mounting Hole Distance - Width
1.38 in
Full Load Current - Resistive
18 A
Horsepower @ Three Phase - 480V AC
3 hp
NEMA Enclosure Material
Not Applicable
Mounting Style
DIN Rail, Surface
Embedded Surge Suppressor
No
Minimum Operating Temperature
-13 Degrees F
Mounting Hole Diameter
0.2 in
Maximum Operating Temperature
140 Degrees F
Mounting Hole Distance - Height
1.97 in
Mechanical Operating Durability
30,000,000
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Terminals
Response Time
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay)
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
7 A
Horsepower @ Three Phase - 240V AC
2 hp
Country of Origin (subject to change)
Germany
