| Property | Value |
|---|---|
| Item | Indexable Insert Drill |
| Diameter | 40.00mm |
| Ratio | 3xD |
| Overall Length | 304.18mm |
| Mounting Style | Screw Clamp |
| Shank Dia. | 40.00mm |
| Cutting Direction | Right Hand |
| Shank Length | 70.00mm |
| ANSI Code | TCF610R3SLR40MH |
| Flute Type | Slow Spiral |
| Number of Inserts | 2 |
| Number of Coolant Holes | 2 |
| Drilling Application | 45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset |
| Shank Type - Machining | Round with Flat and Side Lock |
| Min. Drill Dia. | 61.00mm |
| Central Insert Style | TCF |
| ISO Number | TCF610R3SLR40MH |
| Flute Length | 227.90mm |
| Depth x Dia. Ratio | 3xD |
| Flanged Shank | Yes |
| Max. Drilling Depth | 185.18mm |
| Toolholder Style | TCF |
| Spiral Direction | Right Hand |
| Standards | ISO 9766 |
| Coolant Fed | Coolant Through |
| Max. Drill Dia. | 62.00mm |
| Measurement System | Metric |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |

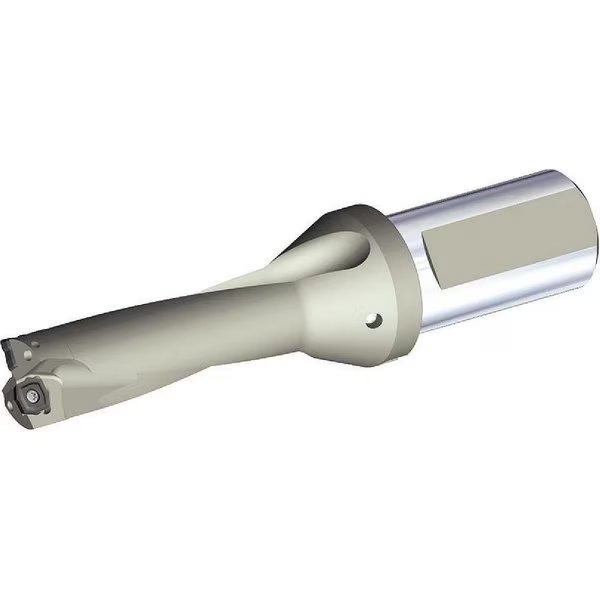

Indexable Insert Drill, 40.00mm, TCF, Widia, Mfr#: TCF610R3SLR40MH
$824.99
Free shipping will be applied on orders over $50
Indexable Insert Drill, 3xD, Max. Drilling Depth 185.18mm, TCF610R3SLR40MH, TCF, Coolant Through
9999 in stock
