| Property | Value |
|---|---|
| Item | Isolation Transformer |
| Input Voltage - Transformer | 120V AC |
| Output Voltage - Transformer | 120V AC |
| VA Rating - Transformer | 1 kVA |
| Phase - Electrical | 1 |
| Mounting - Transformer | Desk Top; Wall |
| Hz - Electrical | 60 Hz |
| Outdoor Rated - Transformer | No |
| Color | Black |
| Temp. Rise | Not Rated |
| Height | 7 1/4 in |
| Width | 7 1/4 in |
| Depth | 10 1/2 in |
| Includes | 9A Circuit Breaker |
| Number of Outlets | 4 |
| Item - Transformer | Isolation Transformer |
| Enclosure Type | Small Tower |
| Standards | UL/cUL |
| Phase | 1 |
| Cord Length | 6 ft |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration | 5-15p |
| Let-through Voltage (Ring Wave) | L-N: u003c10V L-G: u003c10V N-G: u003c0.5V IEEE C62.41 Cat. A |
| Cooling Method | Convection |
| Protection Method | Yes, 9.0A circuit breaker |
| Total Harmonic Distortion | less than 1% |
| Let-through Voltage (Combination Wave) | L-N: u003c130V L-G: u003c10V N-G: u003c0.5V IEEE C62.41 Cat. B |
| Suppression Joule Rating | 680 |
| Output Amp Capacity | 8.3 |
| Noise Suppression Rating | 33-65dB normal mode; u003e80dB common mode |
| Efficiency | 0.96 |
| Form Factor | External |
| Compatibility | Point of Sale (POS) Equipment, Telecommunications Systems, Diagnostic Testing and Precise Measurement Devices, Sophisticated CAD/CAM Workstations, Computer Networking Equipment |
| Protection Type | Surge |
| Product Color | Black |
| Circuit Breaker | Yes |
| Maximum Line Current | 8.30 A |
| TAA Compliant | Yes |

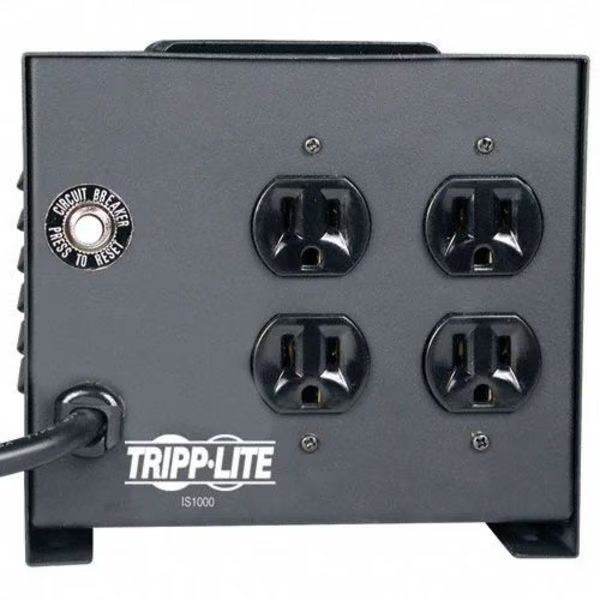

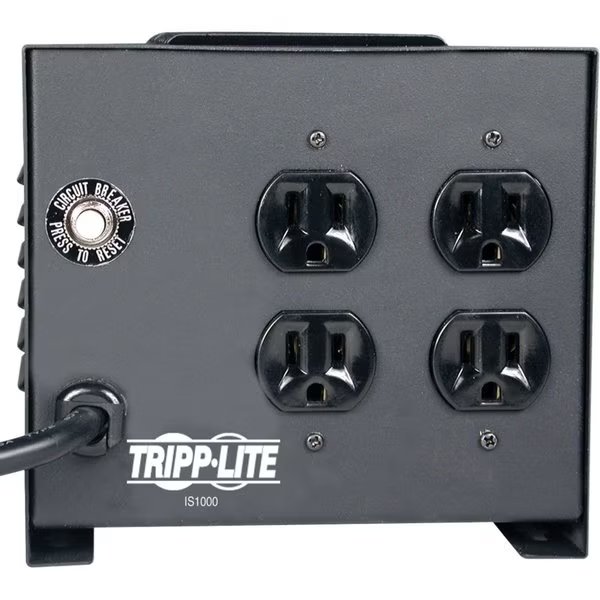

| Receptacles | 4 x NEMA 5-15R |
| Certifications u0026 Standards | UL, cUL |
| Plug/Connector Type | NEMA 5-15P |
| Package Contents | IS1000 Isolation Transformer, Owner's Manual |
| Power Cord/Cable Length | 6 ft |
| Surge Energy Rating | 680 J |
| Additional Information | Let-through Voltage (Combination Wave): L-N: u003c130V L-G: u003c10V N-G: u003c0.5V IEEE C62.41 Cat. B, Let-through Voltage (Ring Wave): L-N: u003c10V L-G: u003c10V N-G: u003c0.5V IEEE C62.41 Cat. A, Noise Suppression Rating: 33-65dB normal mode; u0026gt;80dB common mode, Surge Test Conditions: Per ANSI/IEEE C62.41 - IEEE587 Cat. A u0026 B test waveforms, Total Harmonic Distortion: less than 1%, Transformer Type: Low impedence transformer-based line isolation transformer |
| Power Handling | 1000 VA |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |

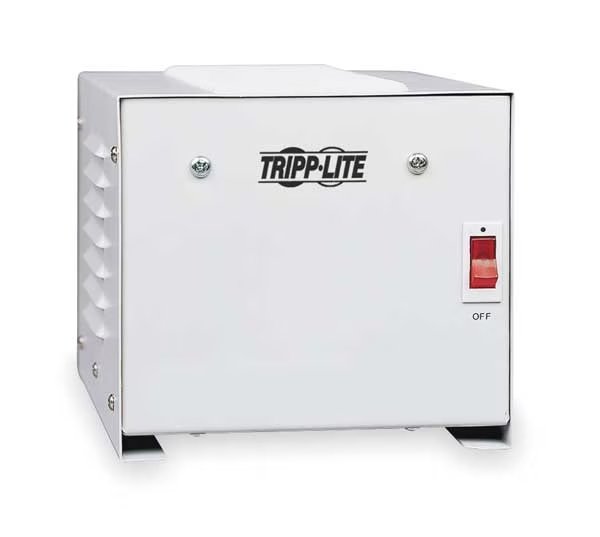

Isolation Transformer, 1 kVA, Not Rated, 120V AC, 120V AC, Tripp Lite, Mfr#: IS-1000
$430.99
Free shipping will be applied on orders over $50
Isolation Transformer, Input Voltage - Transformer 120V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1 kVA, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Number of Outlets 4, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Desk Top, Wall, Outdoor Rated - Transformer No, Temp. Rise Not Rated, Color Black
9999 in stock
