Electrical/Mechanical
Mechanical

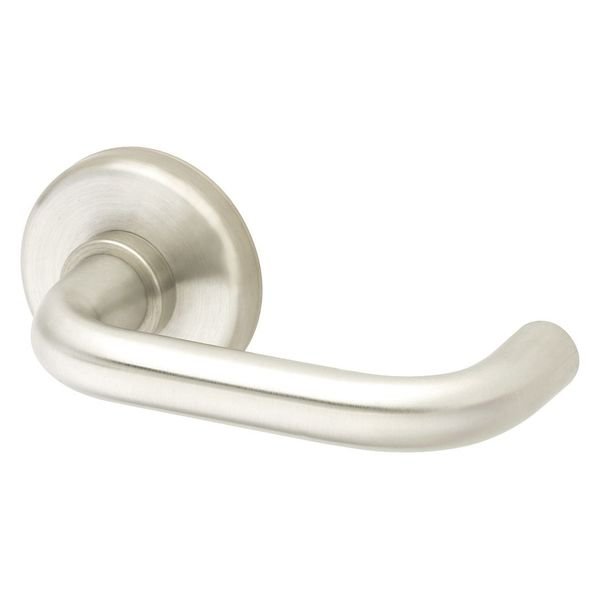

Handle Type
Solid Tube/Return
Mortise / Cylindrical
Mortise
Required Door Thickness
1-3/4 in
Lockset Finish
Satin Chrome
Mortise/Cylindrical
Mortise
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
For Use With
Hollow Metal and Wood Doors
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Includes
2 3/4 in Dia H Rose Flat with Round Edge, Single Key with Latch
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Key Material
Not Applicable
Visual Indicator Message
No Message
Cylinder Core Type
Interchangeable Core Cylinder
Application
Commercial, Industrial
Visual Indicator Location
Not Applicable
Locking/Unlocking Access - Outside
Keyway
ANSI/BHMA Finish
Satin Chromium-Plated
Includes Hardware
Hardware Included
Latch Bolt/Dead Bolt
Latch Bolt
Knob/Handle Material
Brass, Bronze, Stainless Steel
Door Thickness - Minimum
1 3/4 in
Strike Plate Height
4 7/8 in
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F04
Strike Plate Thickness
1 1/4 in
Ligature-Resistant
Not Ligature-Resistant
Door Thickness - Maximum
5 in
Country of Origin (subject to change)
United States
