| Item | Load Break Switch |
| Protection Method | Nonfusible |
| Duty | General |
| Amps | 100 A |
| Voltage | 600V AC |
| Phase | Three |
| HP | 25 hp @ 240V AC, 50 hp @ 480V AC, 50 hp @ 600V AC |
| IP Rating | IP20 |
| Material | Non-Metallic |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Neutral Assembly Included | No |
| Fusible / Nonfusible | Nonfusible |
| Width | 3 1/2 in |
| Standards | CCC, CSA Certified, EAC, IEC, Marine, UL Listed |
| Height | 5 in |
| Depth | 3 1/2 in |
| Enclosure Type | Enclosed |
| Features | Opening for 6 mm (0.24 in) Shaft Width |
| Housing Material | Non-Metallic |
| Horsepower @ 600V AC | 50 hp |
| Voltage Rating | 690V AC |
| For Fuse Class | Not Applicable |
| Resistance Properties | Fire-Resistant |
| Horsepower @ 480V AC | 50 hp |
| Current Rating | 125 A |
| Mounting Style | DIN Rail |
| Horsepower @ 240V AC | 25 hp |
| Shaft Size | 0.24 in (6 mm) |
| Poles Description | 3P |
| [Icw] Rated Short-Time Withstand Current | 1500 A 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Product Name | TeSys VARIO |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Network Frequency | 50/60 Hz |
| Fire Resistance | 960°C IEC 60695-2-1 |
| Product Certifications | UL || CSA || GL || UKCA |
| Performance Level | high performance |
| Range | TeSys |
| Intermittent Duty Class | 30 |
| Ambient Air Temperature For Operation | -20-50°C |
| Network Type | AC || DC |
| Protective Treatment | TC |
| Mounting Support | symmetrical rail || plate |
| Connections - Terminals | power circuit screw clamp terminals 70-70 mm? flexible - with cable end || power circuit screw clamp terminals 95-95 mm? solid |
| [Ie] Rated Operational Current | 68.5 A AC-23 Ue: 400 V |
| Breaking Capacity | 1000 A 400 V AC-21A) || 1000 A 400 V AC-22A) || 1000 A 400 V AC-23A) |
| Contacts Type And Composition | 3 NO |
| Tightening Torque | power circuit 22.6-22.6 N.m screw clamp terminals |
| Electrical Durability | 30000 cycles AC-21 || 30000 cycles DC-1...5 |
| Suitability For Isolation | yes |
| [Ith] Conventional Free Air Thermal Current | 125 A |
| Rated Conditional Short-Circuit Current | 10 kA 400 V 125 A aM || 10 kA 400 V 125 A gG |
| Mechanical Durability | 30000 cycles |
| Product Or Component Type | switch body |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Device Short Name | V |
| Rated Operational Power In W | 22 kW 230...240 V AC-3) || 30 kW 400...415 V AC-3) || 30 kW 690 V AC-3) || 37 kW 500 V AC-3) || 37 kW 690 V AC-23A) || 45 kW 500 V AC-23A) || 22 kW 230...240 V AC-23A) || 37 kW 400...415 V AC-23A) |
| Making Capacity | 1250 A 400 V AC-21A || 1250 A 400 V AC-22A || 1250 A 400 V AC-23A |
| [Icm] Rated Short-Circuit Making Capacity | 2.8 kA 400 V at Ipeak |
| [Ithe] Conventional Enclosed Thermal Current | 100 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Country of Origin (subject to change) | Czechia |
| Package Quantity | 1 |

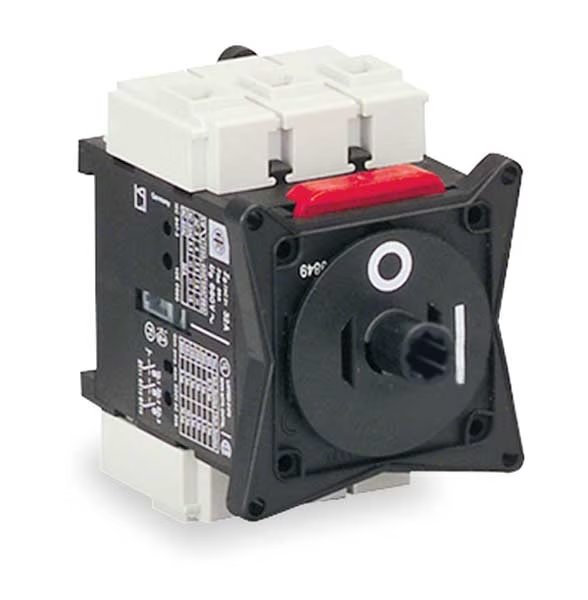

Nonfusible Load Break Switch, 100 A, 600V AC, 3 pole, SQUARE D, Mfr# V5
