| Property | Value |
|---|---|
| Item | Keyless Bushing |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| Keyless Bushing Series | B106 |
| For Shaft Dia. - Bushings | 2 1/8 in |
| Outside Dia. (In.) | 3.316 |
| Overall Length | 1.358 in |
| Material - Bushings | Steel |
| Transmissible Torque | 1,629 ft-lb |
| Material | Steel |
| Bolt Size | M8 x 25 |
| Transmissible Torque (Ft.-Lbs.) | 1629 |
| Type | B-LOC Series B106 |
| Finish | Oil Dipped |
| Shaft Dia. (In.) | 2.125 |
| Transmissible Thrust (Lbs.) | 18,393 |
| Locking Bolt Quantity | 8 |
| Withstand Temp. (Deg. F) | Dependent on Application |
| Hub Contact Pressure (PSI) | 18,516 |
| Outside Dia. | 3.316 in |
| Agency Compliance | RoHS |
| Overall Length (In.) | 1.358 |
| Shaft Dia. Tolerance | +0/-.002 in |
| Hub Contact Pressure | 18,516 psi |
| Flange Type | Flanged |
| For Bore Diameter | 2 1/8 in |
| Maximum Transmitted Torque | 1,629 ft-lb |
| System of Measurement | Inch |
| Standards | ROHS |
| Screw Thread Size | M8 x 25 |
| Overall Width | 1.358 in |
| Outside Diameter | 3 5/16 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |

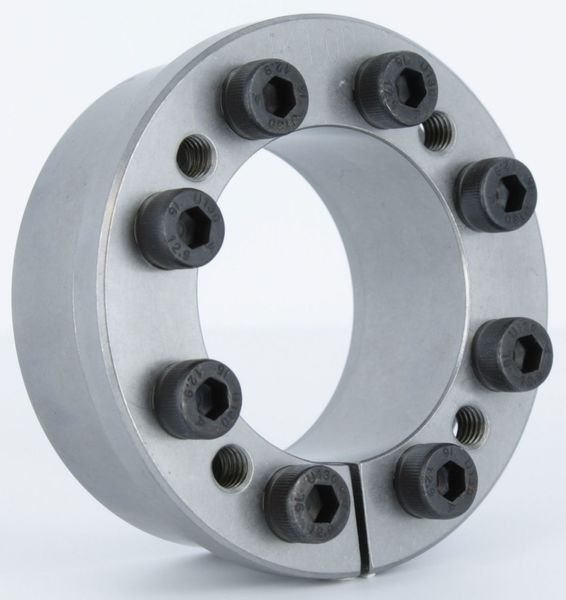

Keyless Bushing, Dia. 2.125 In., 8 Bolt, Fenner Drives, Mfr#: T602202
$38.89
Free shipping will be applied on orders over $50
Keyless Bushing, Flange Type Flanged, For Bore Diameter 2 1/8 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Steel, Outside Diameter 3 5/16 in, Overall Width 1.358 in, System of Measurement Inch, Finish Oil Dipped, Hub Contact Pressure 18,516 psi, Maximum Transmitted Torque 1,629 ft-lb
9999 in stock
