| Property | Value |
|---|---|
| Item | Low Voltage Thermostat |
| Voltage | 24VAC |
| Stages Heat | 1 |
| Mounting Type | Square |
| Color | Premier White |
| Control Range | 50 Degrees to 90 Degrees F |
| System Switching | SPST |
| Height | 3 |
| Width | 3 |
| Dual Transformer Compatible | No |
| Power Method | Hardwired |
| 750mV Compatible | No |
| Depth | 1 1/4 in |
| Features | Mercury Free |
| Automatic Changeover | No |
| Fan Switching | No |
| Mounting | Horizontal |
| Terminal Designations | R, W |
| For Use With | Gas, Oil, Forced Air |
| Battery Backup | No |
| Humidification Control | No |
| Dehumidification Control | No |
| Temporary Temperature Hold | No |
| Key Pad Lockout | No |
| Includes | Dealer Logo Pocket |
| Temporary Program Override | No |
| Temperature Limiting | No |
| Display Type | Analog |
| Control Type | Slide Switch |
| Type | Mechanical Nonprogrammable Conventional Systems |
| Stages | 1H Conventional |
| Includes Positive Off | No |
| Number of Cooling Stages - Conventional System | 0 |
| Overall Depth | 7/8 in |
| Mercury Free | Yes |
| Temperature Control Range | 50 Degrees to 90 Degrees F |
| Temperature Sensitivity | +/-3 Degrees F |
| Millivolt Compatible | No |
| Housing Color | White |
| Thermostat Type | Low Voltage |
| Contact Type | Snap Action |
| Minimum Control Temperature | 50 Degrees F |
| Overall Width | 3 1/8 in |
| Mounting Direction | Vertical |
| Temperature Scale | Fahrenheit |
| Maximum Control Temperature | 90 Degrees F |
| Application | Heat Only |
| Fan Settings | No Fan Setting |
| System Settings | On |
| Electrical Connection Type | Hardwired |
| Operating Humidity Range | 0% to 90% |
| Minimum Operating Humidity | 0 % |
| Maximum Operating Humidity | 90 % |
| Mounting Direction/Shape | Square |
| Overall Height | 3 1/8 in |
| System/Fan Settings | On/No Fan Setting |
| Number of Cooling Stages - Heat Pump System | 0 |
| Shape | Square |
| Temperature Readout | No |
| Number of Heating Stages - Heat Pump System | 0 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces |
| Number of Heating Stages - Conventional System | 1 |
| Digit Size | Standard |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

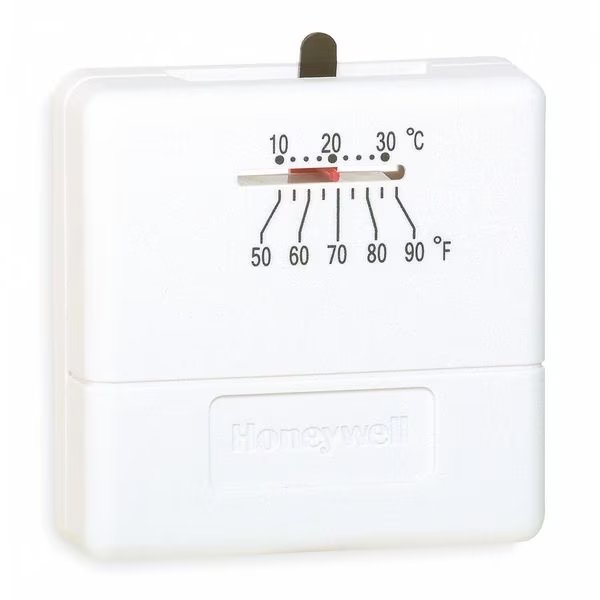

Low Voltage Thermostat, 1 H Hardwired, 24VAC, Honeywell Home, Mfr#: T812A1002
$19.08
Free shipping will be applied on orders over $50
Low Voltage Thermostat, Terminal Designations R, W, System Switching No, Fan Switching No, Automatic Changeover No, Dual Transformer Compatible No, Power Method Hardwired, Voltage 18 to 30V AC, 750mV Compatible No, Mounting Horizontal, Height 3 in, Width 3 in, Depth 1 1/4 in, Color White, Control Range 50 Degrees to 90 Degrees F, Features Mercury Free, For Use With Gas, Oil, Forced Air, Includes Dealer Logo Pocket
9999 in stock
Subtotal:
$19.08
