Welder Industrial Class
Medium
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.025 in to 1/4 in
Aluminum - Material Thickness
0.012 in to 3/8 in
Input Voltage
110/115/120V AC, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC
Welder Max. Output Amps
210
Welded Material
Mild Steel, Stainless Steel
Features
Digital Meters, Dual Memory Selections, Fan-On-Demand, Hot Start, Operator Friendly Interface, Pro-Set
Includes
Power Source Only
Application
Aerospace, Dairy, Food and Beverage Industry, Petro Chemical, Precision Fabrication, Shipboard
TIG Arc Start Feature
Lift Arc Start
TIG Welding Minimum Output Current
5 A
TIG Welding Maximum Output Current
210 A
For Material Type
Stainless Steel, Steel
Stick Welding Output @ Duty Cycle
160 A @ 26.4 V, 60% (3-Phase), 90 A @ 23.6 V, 60% (1-Phase)
Remote Connection Type
14-Pin (Miller)
TIG Welding Output @ Duty Cycle
125 A @ 15 V, 60% (1-Phase), 210 A @ 18 V, 60% (3-Phase)
Stick Welding Maximum Output Current
210 A
Rated Output at Duty Cycle (Stick)
160 A @ 60%, 90 A @ 60%
Input Voltage (Nominal)
120V, 208V, 240V, 400V, 480V
Welder Kit Type
Power Source Only
Open Circuit Voltage
80 V DC
Kit Includes
Power Source Only
Max. Amperage Range (Stick)
150 A - 300 A
Cable Connection Type
Dinse-Style
Stick Welding Minimum Output Current
5 A
Effective Input Current
10 A @ 480V AC (Single-Phase), 11 A @ 480V AC (Single-Phase), 12 A @ 240V AC (Three-Phase), 12 A @ 400V AC (Single-Phase), 13 A @ 240V AC (Three-Phase), 13 A @ 400V AC (Single-Phase), 14 A @ 208V AC (Three-Phase), 15 A @ 208V AC (Three-Phase), 20 A @ 240V AC (Single-Phase), 22 A @ 120V AC (Single-Phase), 22 A @ 240V AC (Single-Phase), 23 A @ 120V AC (Single-Phase), 24 A @ 208V AC (Single-Phase), 26 A @ 208V AC (Single-Phase), 6 A @ 480V AC (Three-Phase), 7 A @ 400V AC (Three-Phase), 8 A @ 400V AC (Three-Phase)
Process
Stick Welding (SMAW), TIG Welding (GTAW)

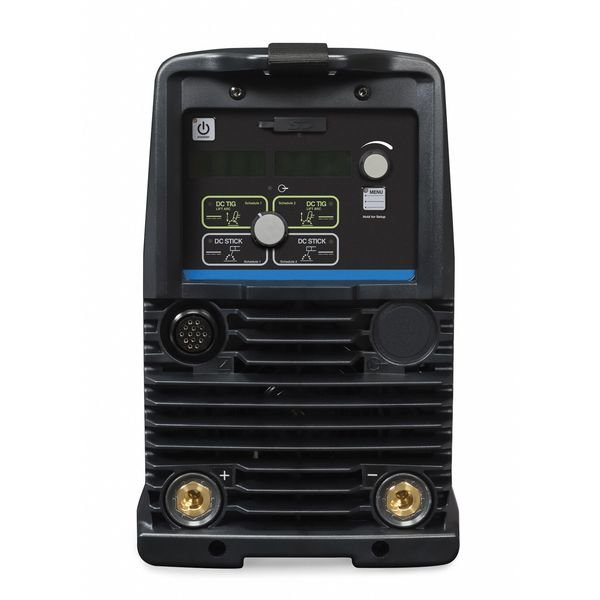

brand-mfr model
MILLER ELECTRIC - 907682
Welder Type
Power Source Only
Country of Origin (subject to change)
United States
