| Property | Value |
|---|---|
| CAD Available | Yes |
| Item | Machinery Eye Bolt |
| Shoulder Style | With Shoulder |
| System of Measurement | Inch |
| Thread Size | 3/4 |
| Shank Length | 4 in |
| Eye Inside Diameter | 1-1/2 in |
| Material | Steel |
| Finish | Plain |
| Overall Length | 3-13/32 in |
| Thread Length | 4 |
| Working Load Limit | 5,000 lb |
| Application | Lifting |
| Screw Size | 3/4 in |
| Shoulder Length | 9/32 in |
| Min. Tensile Strength | 65,000 psi |
| Eyebolt Type | Lift with Shoulder |
| Package Quantity | 1 |
| Type | Lift with Shoulder |
| Dimensional Standards | ASME B18.15 |
| Material Quality Standard | ASTM A489 |
| Shoulder Diameter | 1-3/16 in |
| Shank Diameter | 3/4 in |
| Tensile Strength | 65,000 psi |
| Eye Outside Diameter | 2 13/16 in |
| Standards | ASME B18.15 |
| Source | Made in North America |
| Includes Nut | No |
| Eye Closure | Closed |
| Fastener Length | 3 13/32 in |
| Thread Type | Coarse |
| Pack Size | Small Pack |
| Globally Sourced | Made in USA* |
| Thread Size | 3/4 |
| Thread Type | Coarse |
| Manufacturer Location | Made in USA* |
| Fastener Length | 3 13/32 in |
| Material Quality Standards | ASTM A489 |
| Dia./Thread Size | 3/4 |
| Eye Outside Dia. | 2 13/16 in |
| Finish Type | Plain |
| Head Shape | Loop |
| Drive Type | No Drive |
| Shank Dia. | 3/4 in |
| Material Type | Steel |
| Shoulder Dia. | 1.12 in to 1.25 in |
| Eye Inside Dia. | 1 1/2 in |
| Country of Origin (subject to change) | United States |

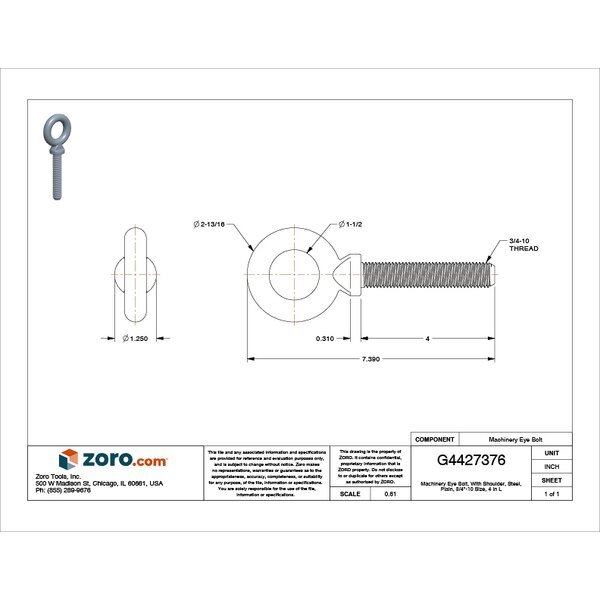

Machinery Eye Bolt With Shoulder, 3/4"-10, 4 in Shank, 1-1/2 in ID, Steel, Plain, Ken Forging, Mfr#: K2028-4
$19.99
Free shipping will be applied on orders over $50
Machinery Eye Bolt, System of Measurement Inch, Eyebolt Type Lift with Shoulder, Material Steel, Finish Plain, Thread Size 3/4 In.-10, Thread Length 4 in, Shank Dia. 3/4 in, Shank Length 4 in, Shoulder Dia. 1.12 in to 1.25 in, Shoulder Length 9/32 in, Eye Inside Dia. 1 1/2 in, Eye Outside Dia. 2 13/16 in, Overall Length 3 13/32 in, Min. Tensile Strength 65,000 psi, Working Load Limit 5,000 lb
9999 in stock
Subtotal:
$19.99
