Male Disconnect, Red, 22-18AWG, PK25, 3M, Mfr#: MTI18-250Q

Name: Male Disconnect, Red, 22-18AWG, PK25, 3M, Mfr#: MTI18-250Q
Brand: 3M
SKU: GRG6126346
Price: 10.89 USD
Availability: inStock

Male Disconnect, Insulation Color Red, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 0.95 in, Package Quantity 25

SKU: GRG6126346

Manufacturer: MTI18-250Q

UPC: 00051128600269

Brand: 3M

Category: Wire Disconnects

$10.89

🚚 Free shipping will be applied on orders over $50

✓ In stock

Minimum order: 1 piece

Subtotal:

$10.89

Final shipping and tax calculated in checkout

Availability: Ships in 1 day

Item

Male Disconnect

Insulation

Full

Material

Plastic

Insulation Color

Red

Insulation Type

Nylon

Wire Range

22 to 18 AWG

Connection Type

Crimp

Tab Size

0.032 in x 0.250 in

Overall Length

0.95 in

Seam

Butted

Max. Voltage

1,000 V

Max. Temp.

221 Degrees F

Standards

CSA Certified, RoHS Compliant, UL Listed

Barrel Inside Dia.

0.065 in

Connection Material

Electro-Tin-Plated Copper

Terminal Type

Disconnect

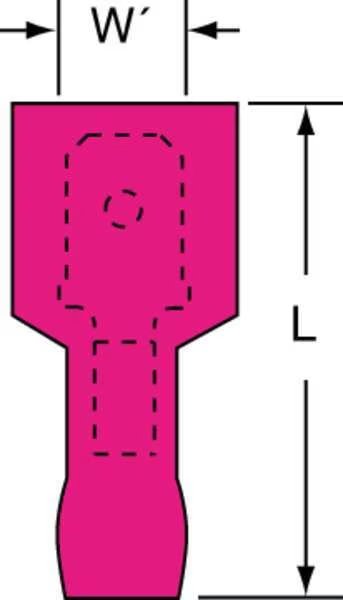

Mates with Male Tab Width (W')

0.25 in

Mates with Female Width

0.25 in

Minimum Conductor Size

22 AWG

Maximum Recommended Voltage Rating

600V

Fastener Orientation

Male

Maximum Insulation Outer Diameter

0.145 in

Solution for

Wireless Network Infrastructure Accessories

Connection Width

0.25 in

Disconnect Type

Male

Overall Diameter

0.3 in

Pad Width

0.25 in

Barrel Length

0.25 in

Max. Number of Cores

424

Terminal Style

Fully Insulated

Maximum Conductor Size

18 AWG

Maximum Insulation Outside Diameter

0.145 in

Overall Width

0.44 in

Maximum Voltage Rating

600 to 1000V

Barrel Inside Diameter

0.065 in

Diameter (D)

0.3 in

Tab Width

0.25 in

Country of Origin (subject to change)

United States

Package Quantity
