| Item | Male Run Tee |
| Thread Size | 3/8-18 |
| Pressure (PSI) | 150 |
| Standards | DOT FMVSS 571.106, SAE, SAE 100424BA |
| Pipe Size | 3/8 in |
| Tube Size | 3/8 in |
| Includes | Nut and Sleeve |
| Connection | Compression Nylon Tube |
| Hex Size | 5/8 in |
| Temp. Range | -40 Degrees to 200 Degrees F |
| Sub-Category | Tees |
| Type | Male |
| Material | Brass |
| Application | Air |
| Thread Size C | 3/8-18 |
| Fitting Side A Connection Type | Compression |
| Includes Pre-Applied Thread Sealant | No |
| System of Measurement | Imperial |
| Compatible Tube Material | Nylon |
| Fitting Material | Brass |
| Maximum Operating Pressure | 150 psi |
| Fitting Side A Tube Outer Diameter | 3/8 in |
| Thread Size A | 3/8-18 |
| Maximum Operating Temperature | 200 Degrees F |
| Fitting Side C Connection Type | MNPT |
| Fitting Side B Tube Outer Diameter | 3/8 in |
| Fitting Side C Pipe Size | 3/8 in |
| Minimum Operating Temperature | 40 Degrees F |
| Overall Length | 2 3/16 in |
| Specific Fitting Shape | Adapter Tee |
| Thread Size B | 3/8-18 |
| Finish/Coating | Nickel-Plated |
| Fitting Side B Connection Type | Compression |
| End Connection Type | Compression, Threaded |
| For Tube OD | 3/8 in x 3/8 in |
| Connection Type | Compression x Compression x MNPT |
| Fitting Shape | Tee |
| Threading Size | 3/8-18 x 3/8-18 x 3/8-18 |
| Fitting Body Material | Nickel-Plated Brass |
| For Tube Outside Diameter | 3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

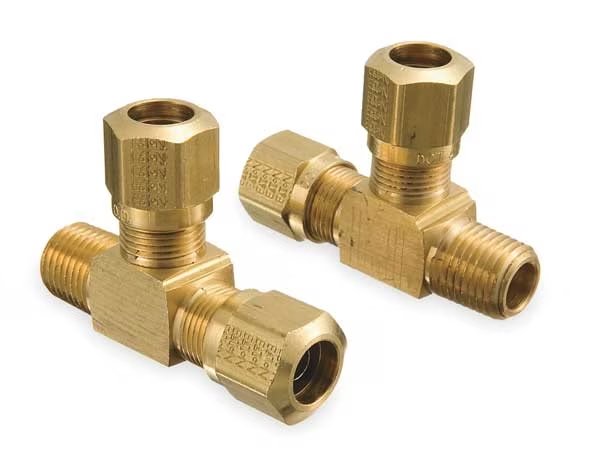

Male Run Tee, 3/8-18, 3/8 In Tube Sz, WEATHERHEAD, Mfr# 1471X6X6X6
$20,99
Free shipping will be applied on orders over $50
Male Run Tee, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type MNPT, Finish/Coating Nickel-Plated, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, Thread Size C 3/8-18, Thread Size B 3/8-18, Thread Size A 3/8-18, System of Measurement Imperial, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 3/16 in
Out of stock
