Specific Fitting Shape

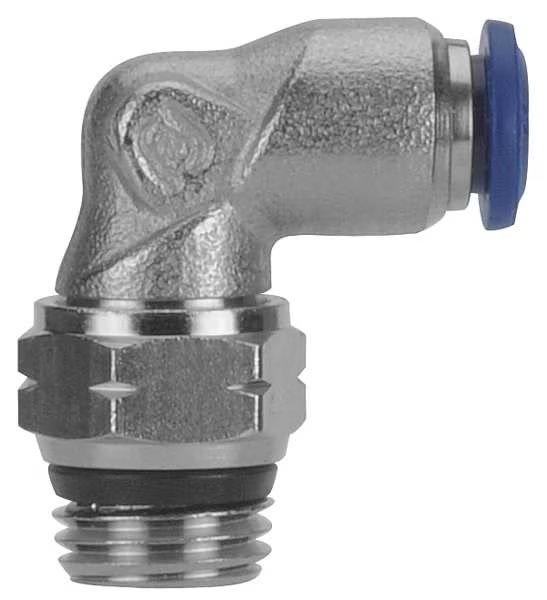

90 Degrees Swivel Elbow Adapter
Tube Fitting Material
Brass
Body Material
Nickel Plated Brass
Fittings Sub-Category
Elbows
Temp. Range
0 Degrees to 160 Degrees F
Specific Pipe Fitting Shape
90 Degree Elbow
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Elbow
Connection Type
Push-to-Connect x Universal
Standards
ISO 14743:2004, PED 2014/68/UE, REACH 1907/2006, RoHS 2011/65/CE, Silicone Free Certified
Pipe Size - Pipe Fitting
1/8 in
Fitting Side B Connection Type
Universal
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Fitting Side A Tube Outer Diameter
1/4 in
Minimum Operating Temperature
0 Degrees F
Maximum Operating Pressure
290 psi
Release Ring Material
NBR70
Includes Pre-Applied Thread Sealant
Yes
System of Measurement
Imperial
Fitting Side A Connection Type
Push-to-Connect
Maximum Operating Temperature
160 Degrees F
Fitting Side B Pipe Size
1/8 in
Finish/Coating
Nickel Plated
Fitting Thread Size
1/8-27
For Tube Outside Diameter
1/4 in
End Connection Type
Push-to-Connect, Threaded
Fitting Body Material
Nickel Plated Brass
Country of Origin (subject to change)
Italy
